Description
xProduct Description:

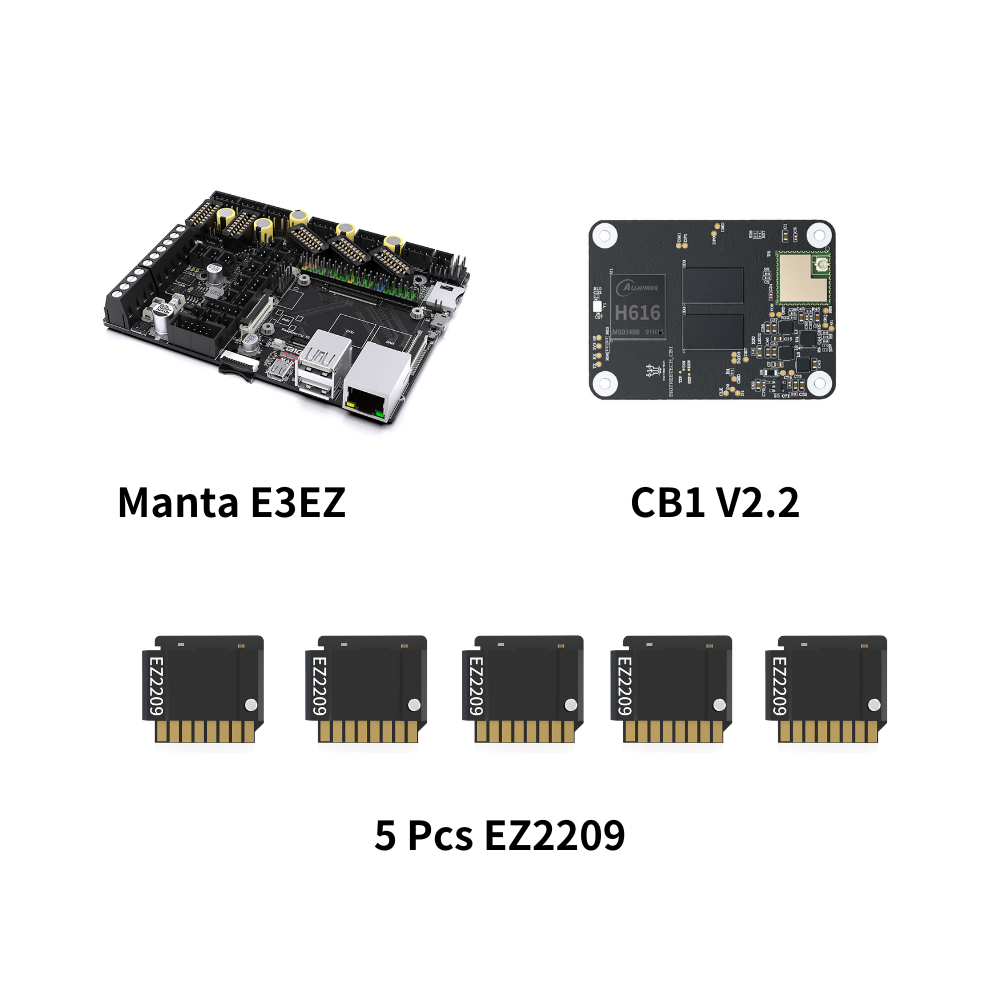

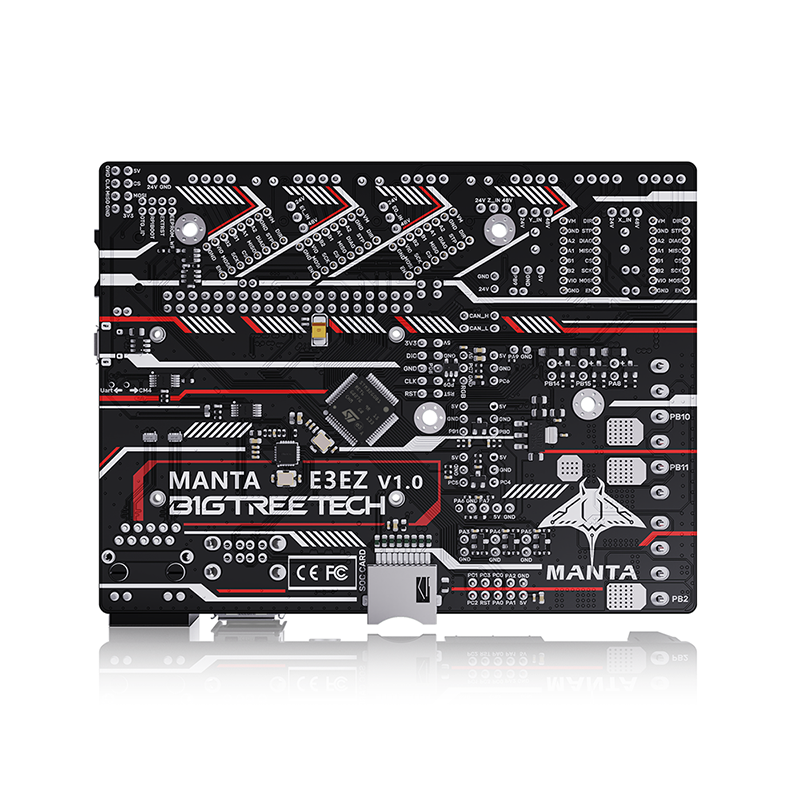

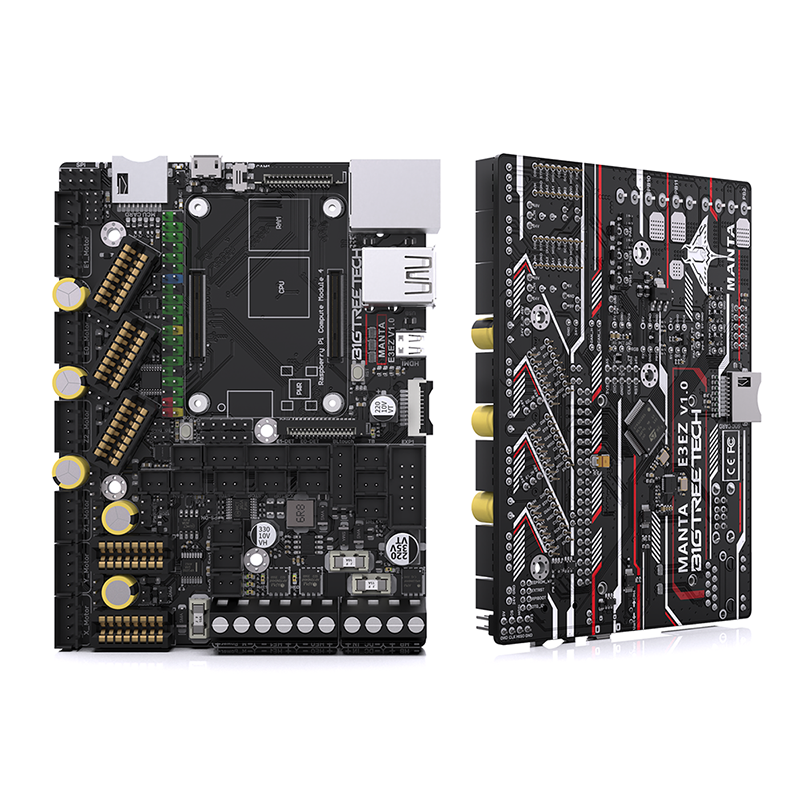

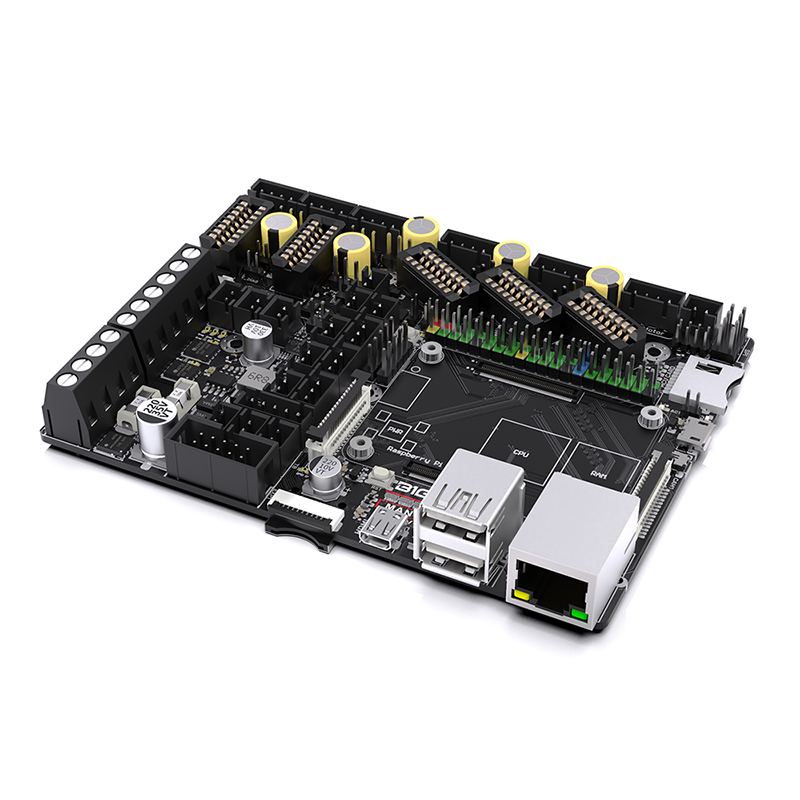

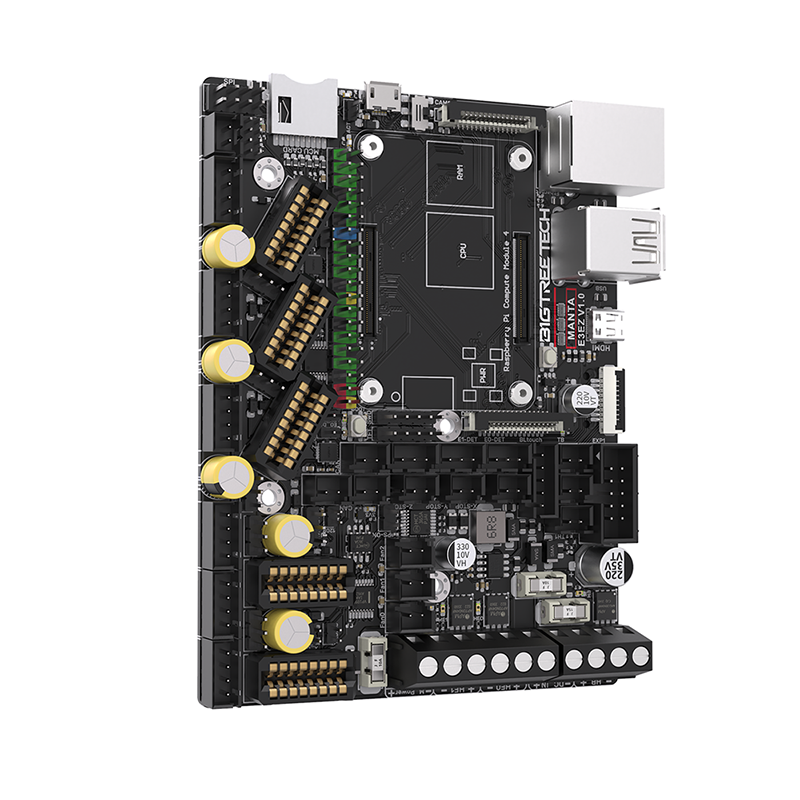

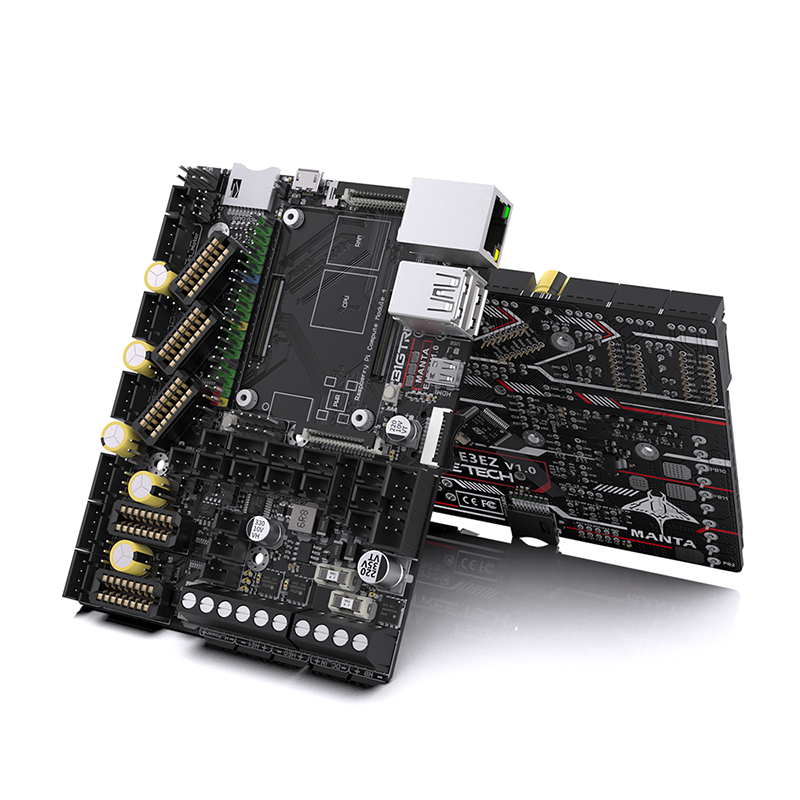

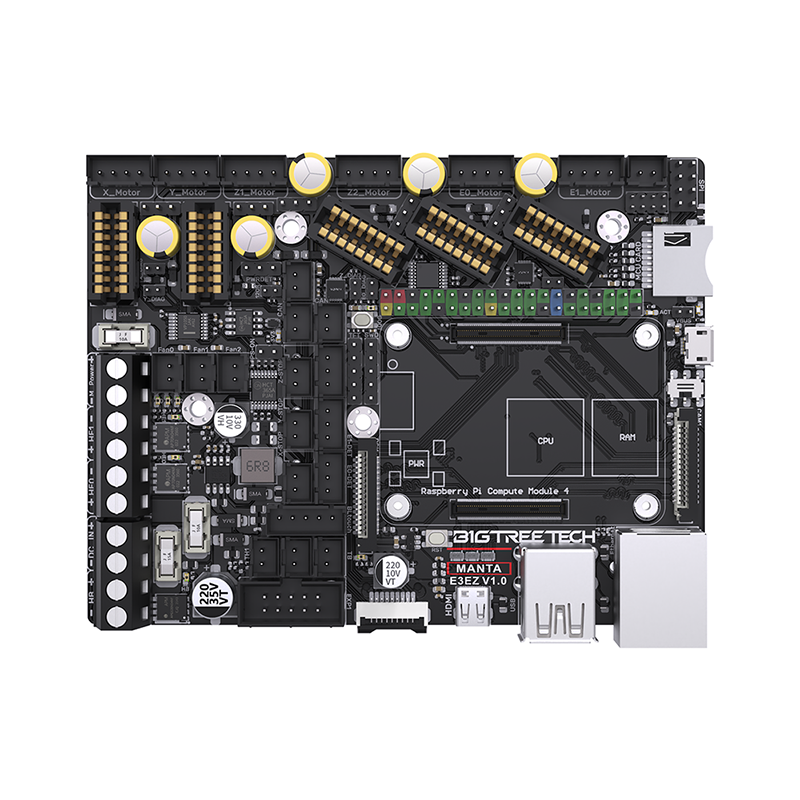

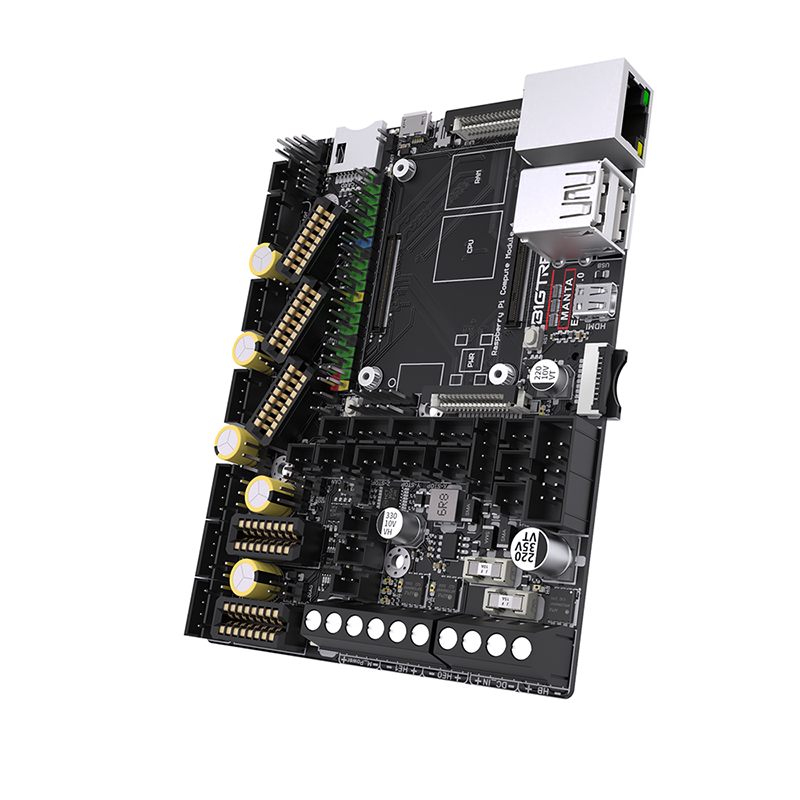

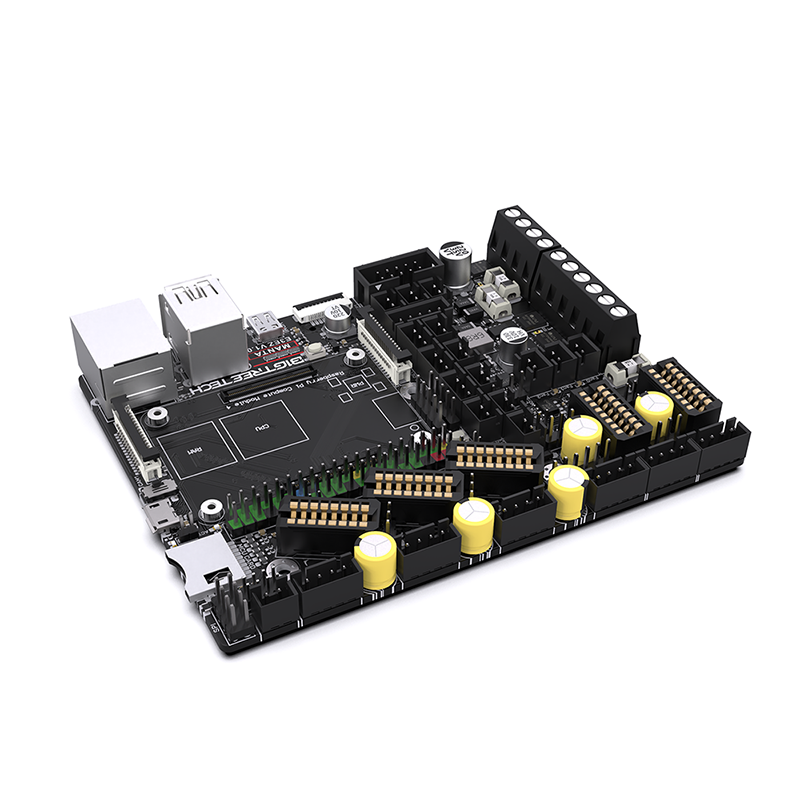

The BIGTREETECH MANTA E3EZ V1.0 is a motherboard developed by the 3D printing team of Shenzhen Bigtree Technology Co. to help you to take your Ender 3 to the next level whether that means running Klipper or even Marlin with all of the latest features. This is our first motherboard that incorporates “Manta” technology (B2B connectors for the CB1 or CM4 modules) and “EZ” technology (the ability to use the latest EZ drivers). Simply plug in the CB1 core board and EZ drivers on the motherboard to upgrade your Ender 3 printer to run Klipper. Due to there being no need for an external raspberry pi the Manta series saves you messy cabling and results in a highly compact implementation.
Display Compatibility:
MANTA series motherboards support SPI and HDMI screens.
Files:
The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, see this link:
https://github.com/bigtreetech/Manta-E3EZ
Product Description
Direct Upgrade for Ender-3
Drop-in replacement for Ender-3. The mounting holes are in the same location which means you just need to position it and screw it down.

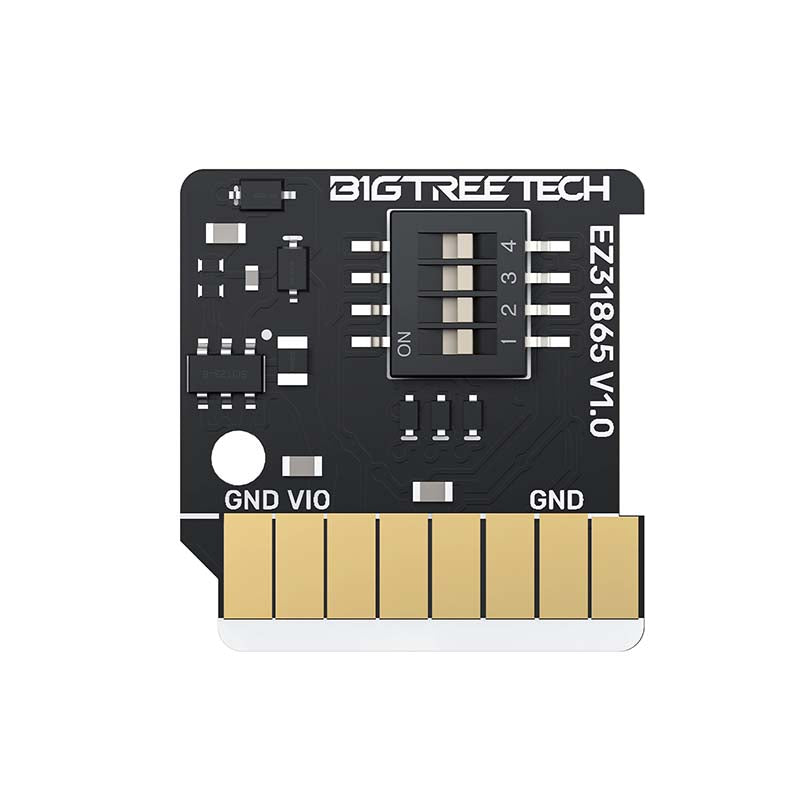

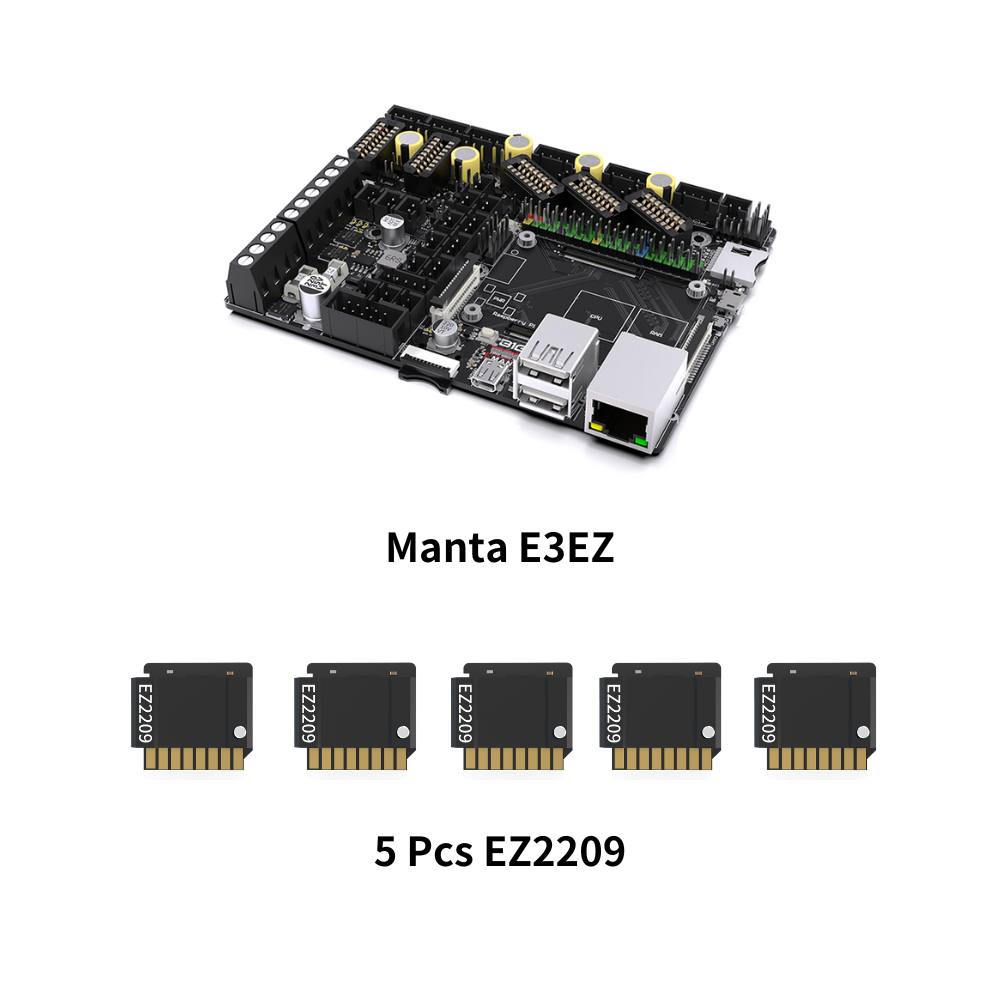

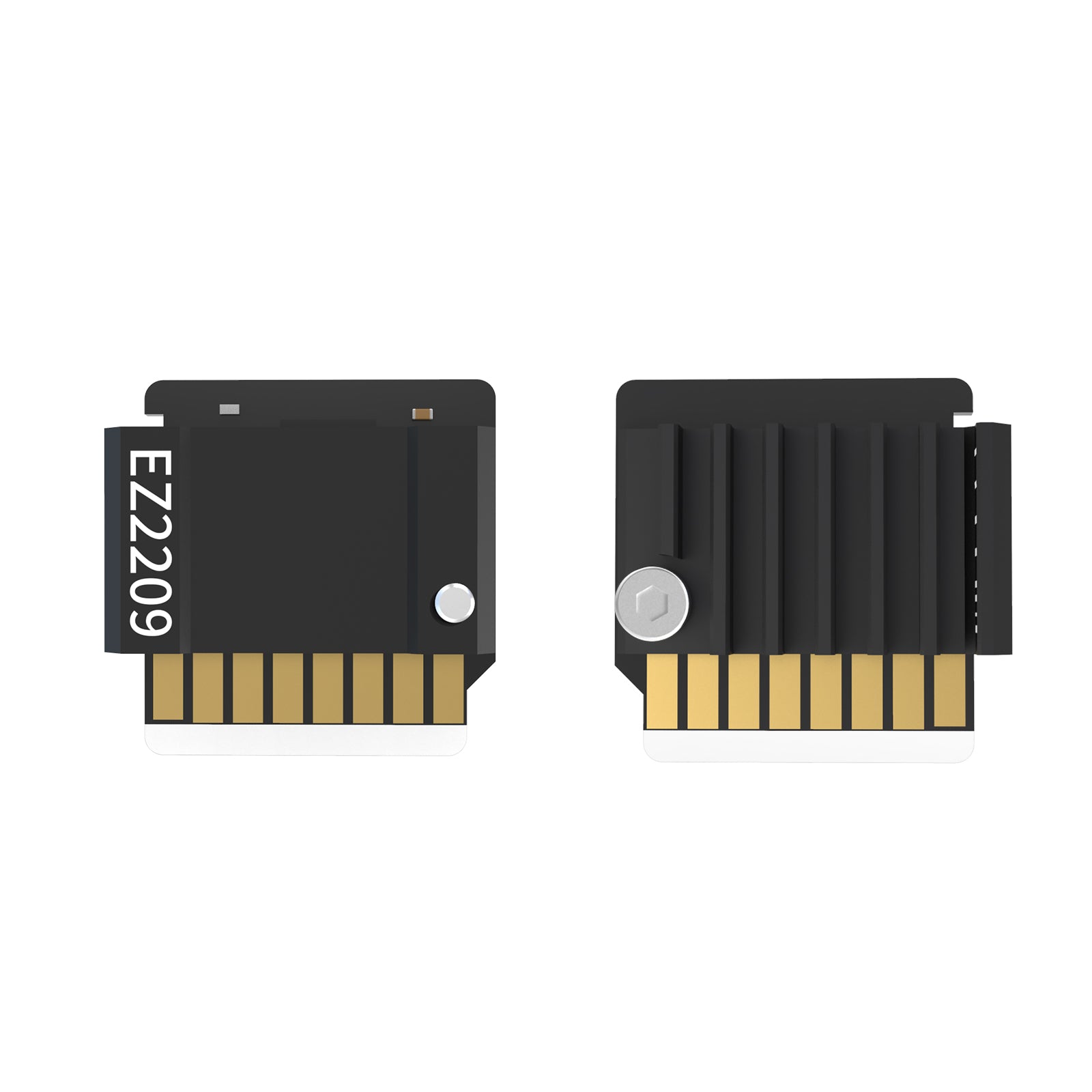

5 Mistake Proof EZ Driver Slots
Select between SPI and UART in firmware. No need for jumpers. No risk of reverse insertion. Plug them in with the confidence of knowing that your drivers will start up without releasing the magic smoke.
High Performance You Can Rely On
32-bit, 64 MHz ARM Cortex-M0+ series STM32GOB1RE MCU. Don't want to use a CB1/CM4? No problem! Marlin is supported without one. Choose between Marlin or Klipper at will.

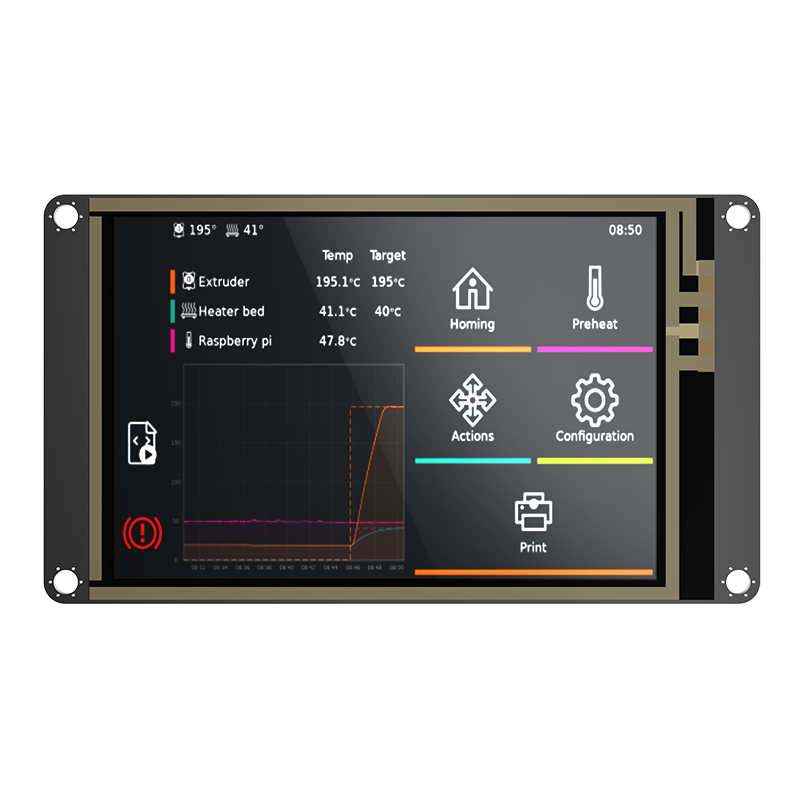

Supports Color Touchscreens

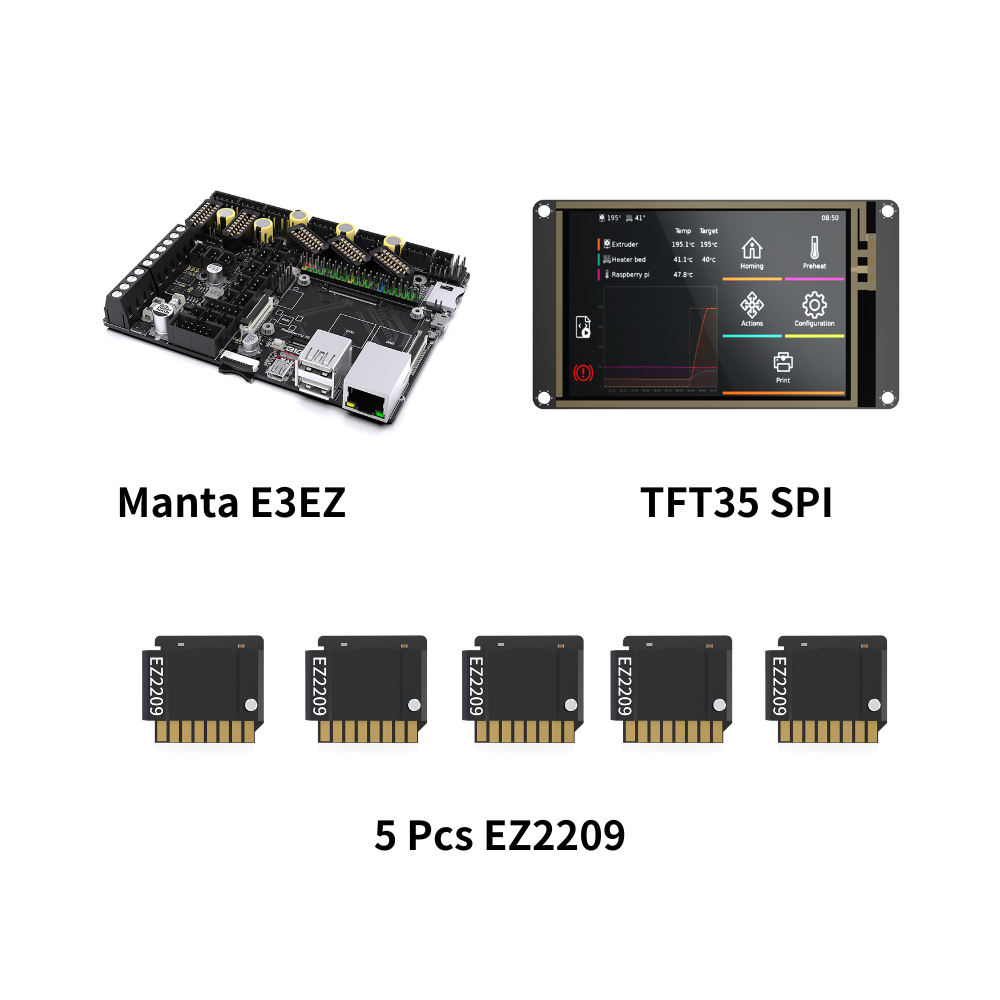

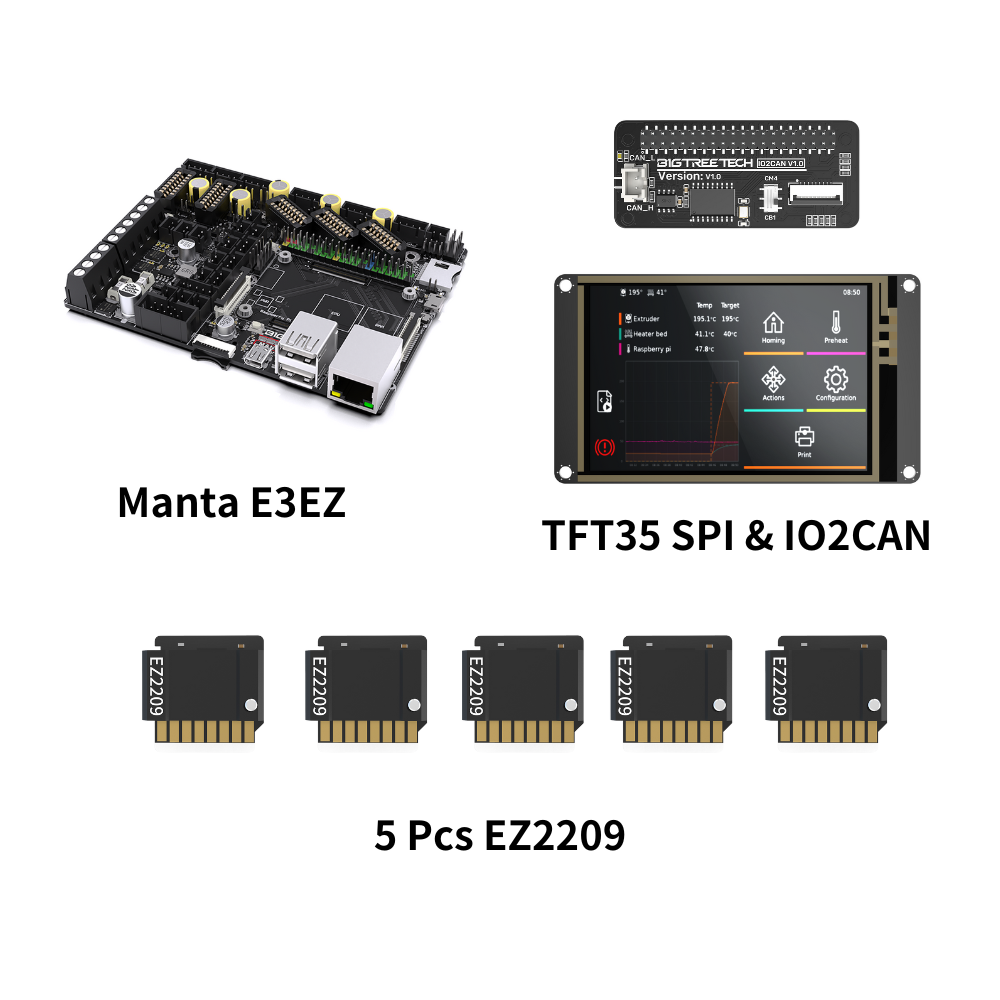

Onboard SPI and HDMI interfaces provide you with multiple display options to cater to your budget and up your Klipper game.
Enhanced Safety
Equipped with multiple safety features, the Manta E3EZ allows you to have peace of mind while producing the best prints.
What's in the box?
BIGTREETECH MANTA EЗEZ x 1
DIY Crimp Terminal Set x 1
BTT Duck Toy x1
Thank You Card x 1
*About Manta Serials Board
Intro:

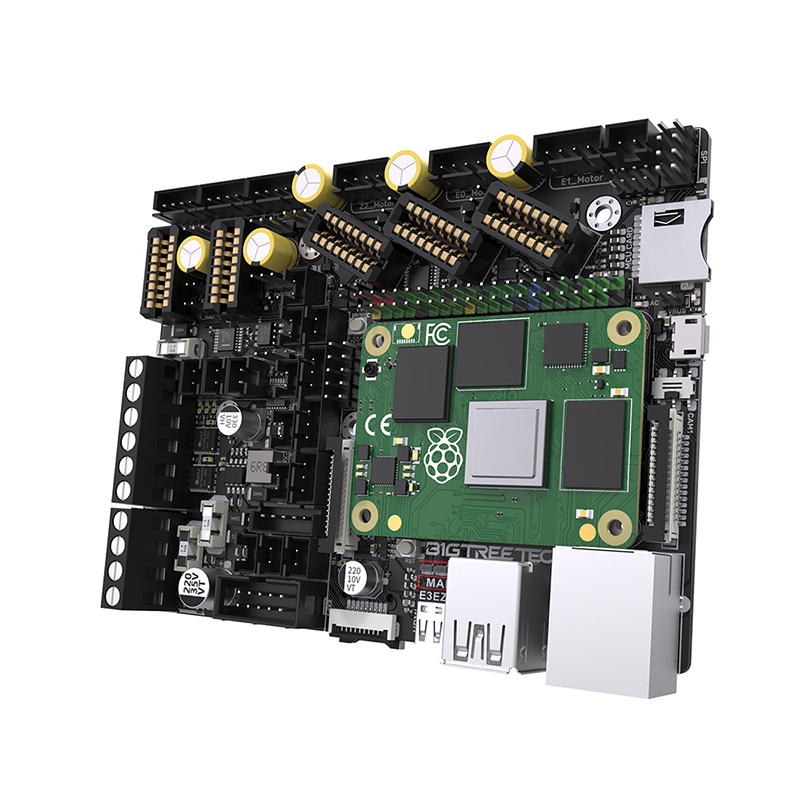

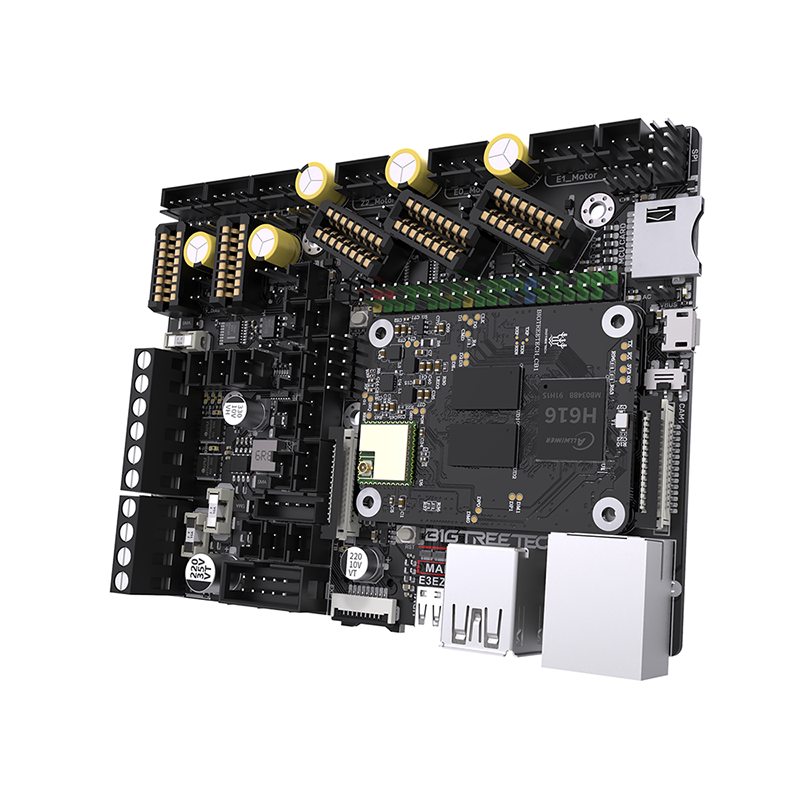

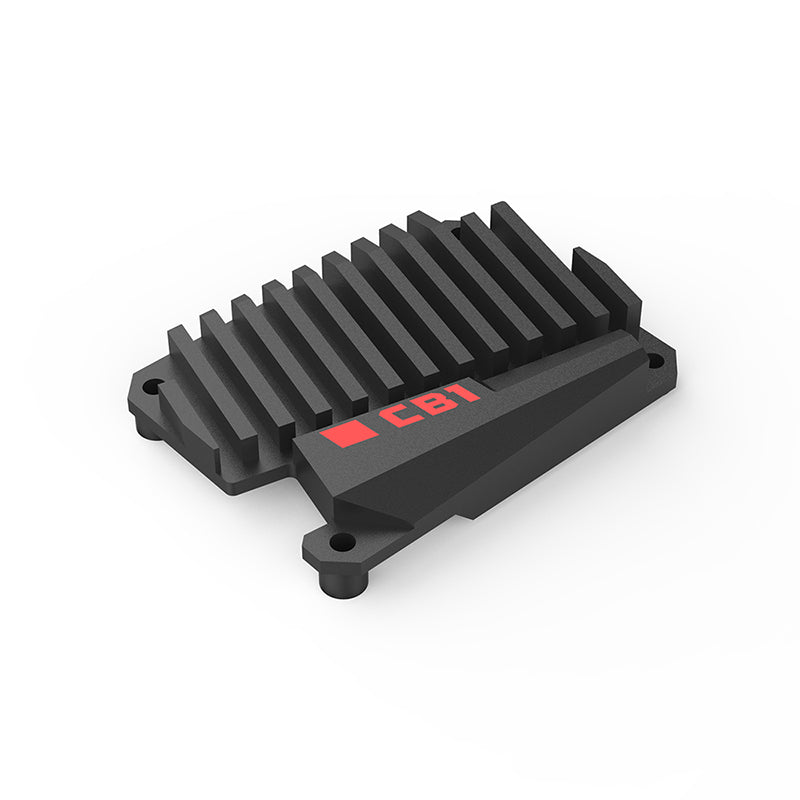

Born for Klipper. Save space and time by installing a CB1 or Raspberry Pi CM4 directly onto the motherboard to run Klipper or OctoPrint.
Highlights:
• Designed with the same connector as Raspberry Pi to ensure a perfect connection with all versions of CM4, and CB1
• Innovative integrated design, highly cost-effective,
• 32-bit 64MHz ARM Cortex-M0+ series chip can run Marlin without CB1/CM4
• 40 pins GPIO, offers a wide range of connectivity to meet your DIY needs
Intro:
Born for Klipper. Save space and time by installing a CB1 or Raspberry Pi CM4 directly onto the motherboard to run Klipper or OctoPrint.
Highlights:
• Designed with the same connector as Raspberry Pi to ensure a perfect connection with all versions of CM4, and CB1
• Innovative integrated design, highly cost-effective
• 32-bit 64MHz ARM Cortex-M0+ series chip can run Marlin without CB1/CM4
• 40 pins GPIO, offers a wide range of connectivity to meet your DIY needs
Compatibility & Extensibility
Dimensions & Specs
MCU
ARM Cortex-M0+ STM32G0B1RE 64MHz
Motherboard Power Supply Voltage
DC12V-DC24V
Motor Supply Voltage
DC12V-DC56V
Logic Voltage
DC 3.3V
Heater Connection
Heated Bed (HB), Heater Cartridge (HE0, HE1)
HB Port Max Current
10A Continuous, 11A Instantaneous
Heater Cartridge Max Current
5A Continuous, 6A Instantaneous
Fan Port
3 x PWM, 2 x Always On
Fan Port Max Current
1A Continuous, 1.5A Instantaneous
Overall Max Current(Heater Cartridge+Driver+All Fans)
<10A
Expansion Port
BLTouch, PS-ON, PWR-DET, Fil-DET, RGB, CAN FD, SPI
Motor Driver
Support EZ5160, EZ2209, EZ2208, EZ2225, EZ2226, EZ2130, EZ6609…
Driver Mode
SPI, UART
Motor Socket
X, Y, Z (Dual Z Axes), E0, E1
5 Channels in Total
Thermistor
3 x 100K NTC
Display
SPI Touchscreen, LCD Display
PC Connection
Micro USB
Interface
USB 2.0x2, LAN, DSI, CSI, SPI, 40Pin-GPIO, HDMI0, SOCCard, MCU-Card
Supported Kinematics
Cartesian, Delta, Kossel, Ultimaker, CoreXY
Quick View User Manual
User Manual
The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, click here.
