Product Description

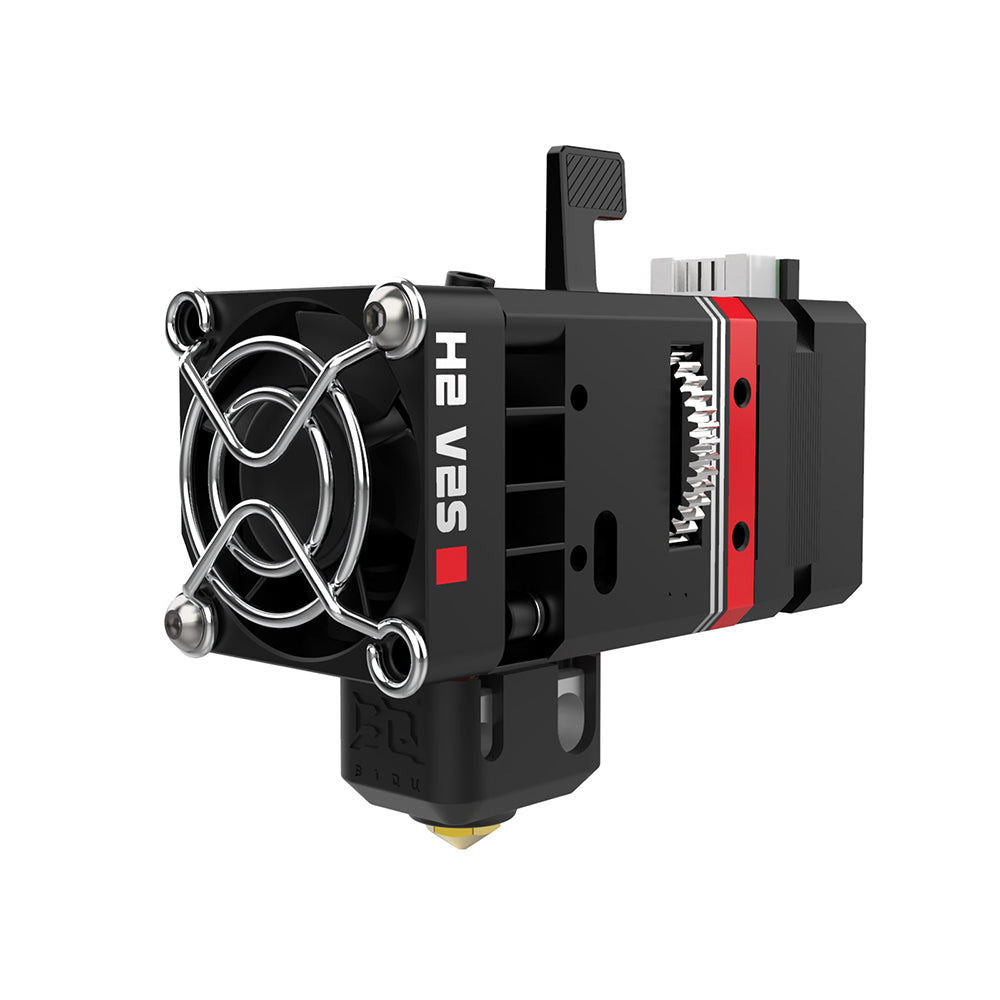

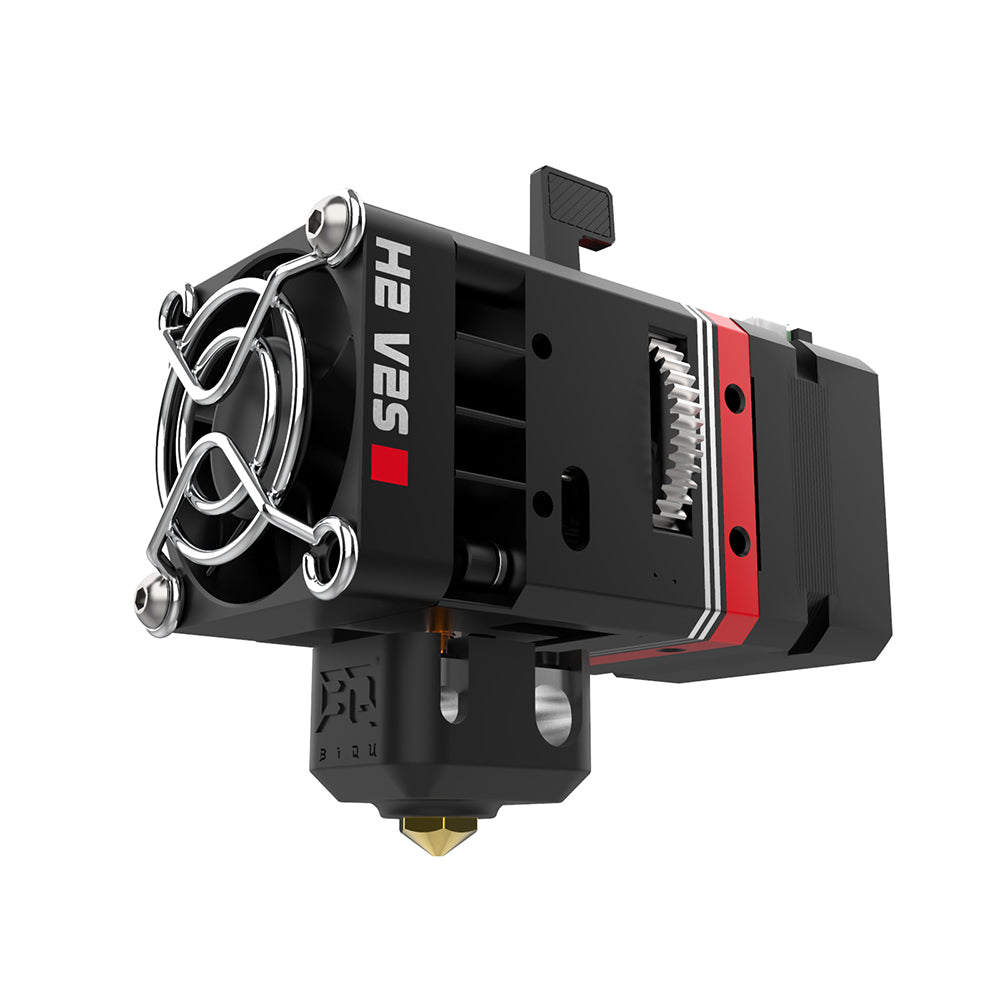

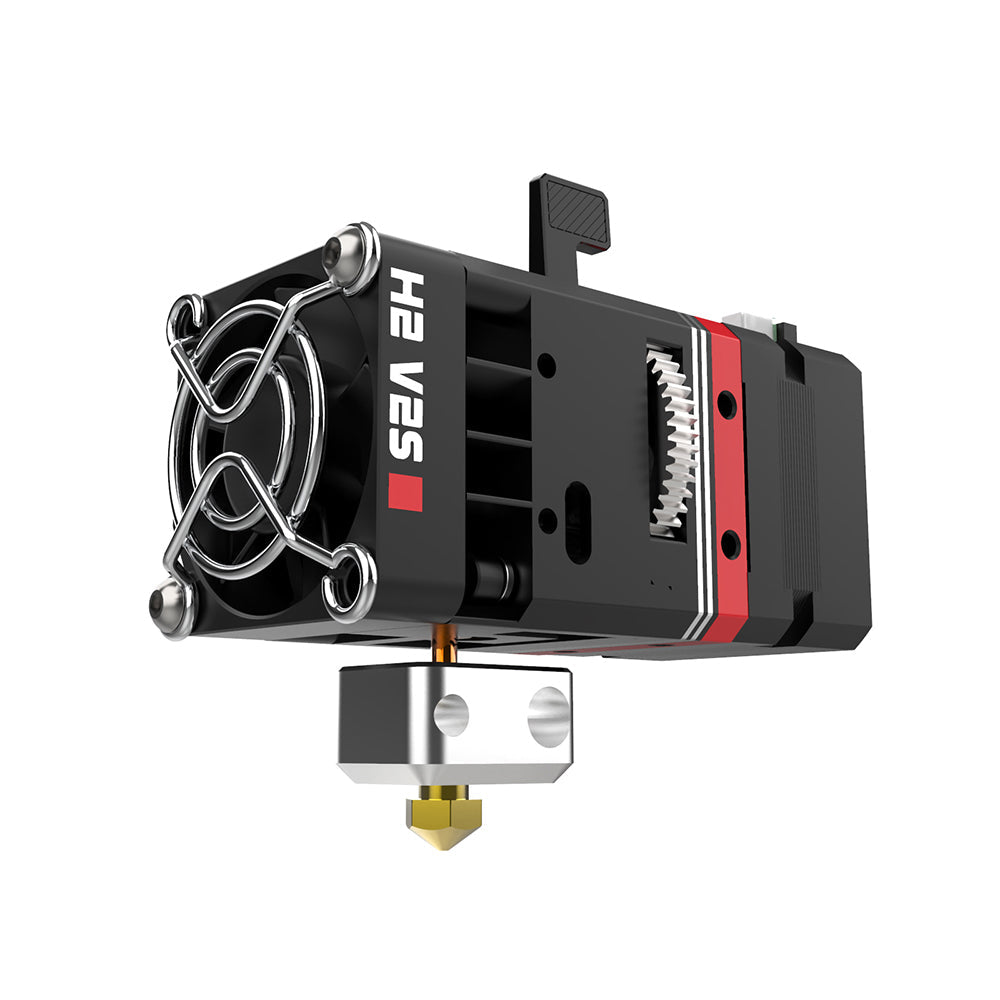

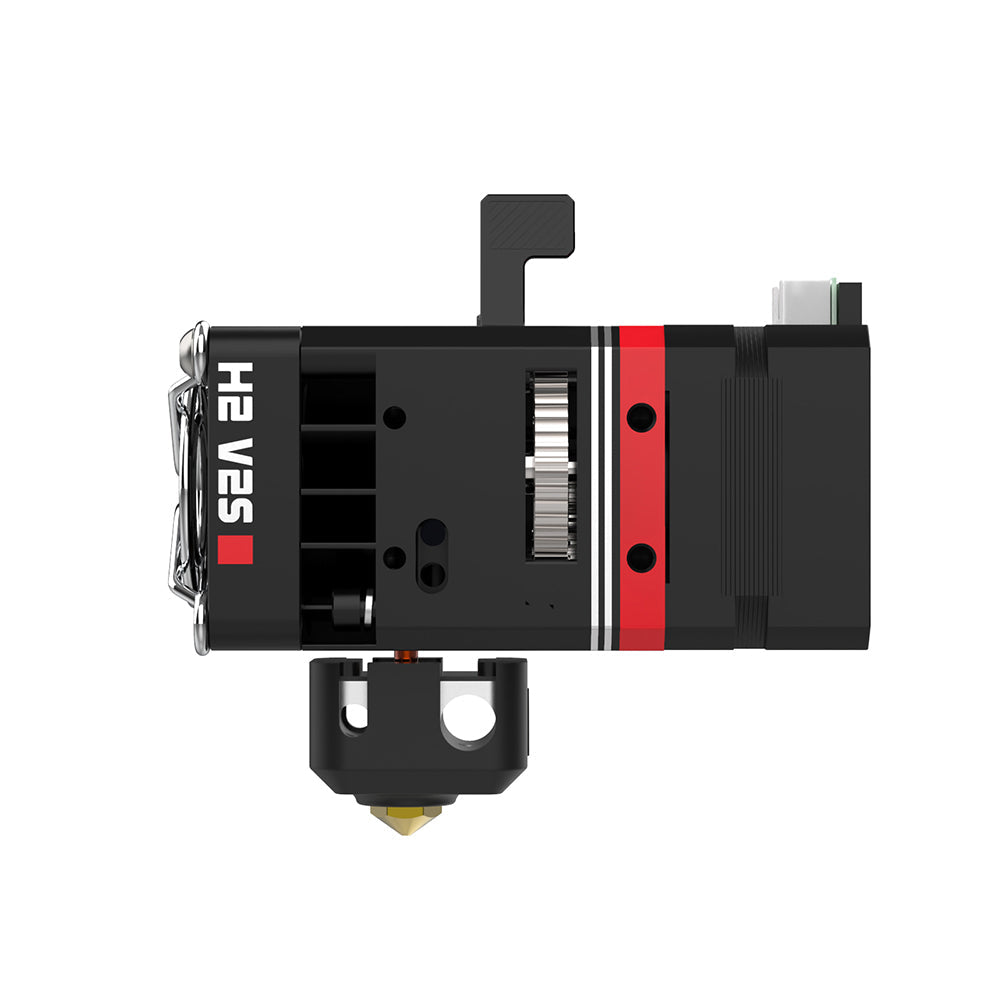

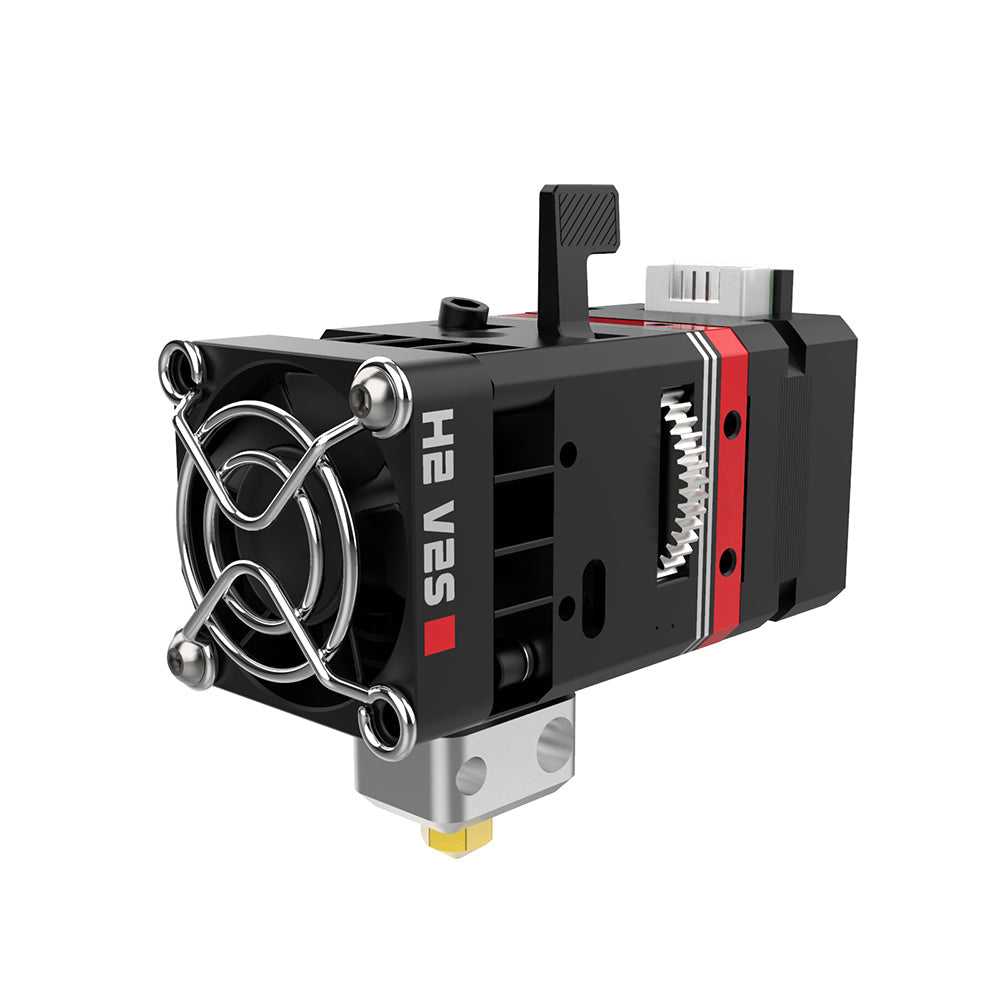

H2 V2S
Dual Gear | Direct Drive | Cost-effective Choice

195g lightweight

Support 270℃

Dual gear 7:1

Labor-saving level

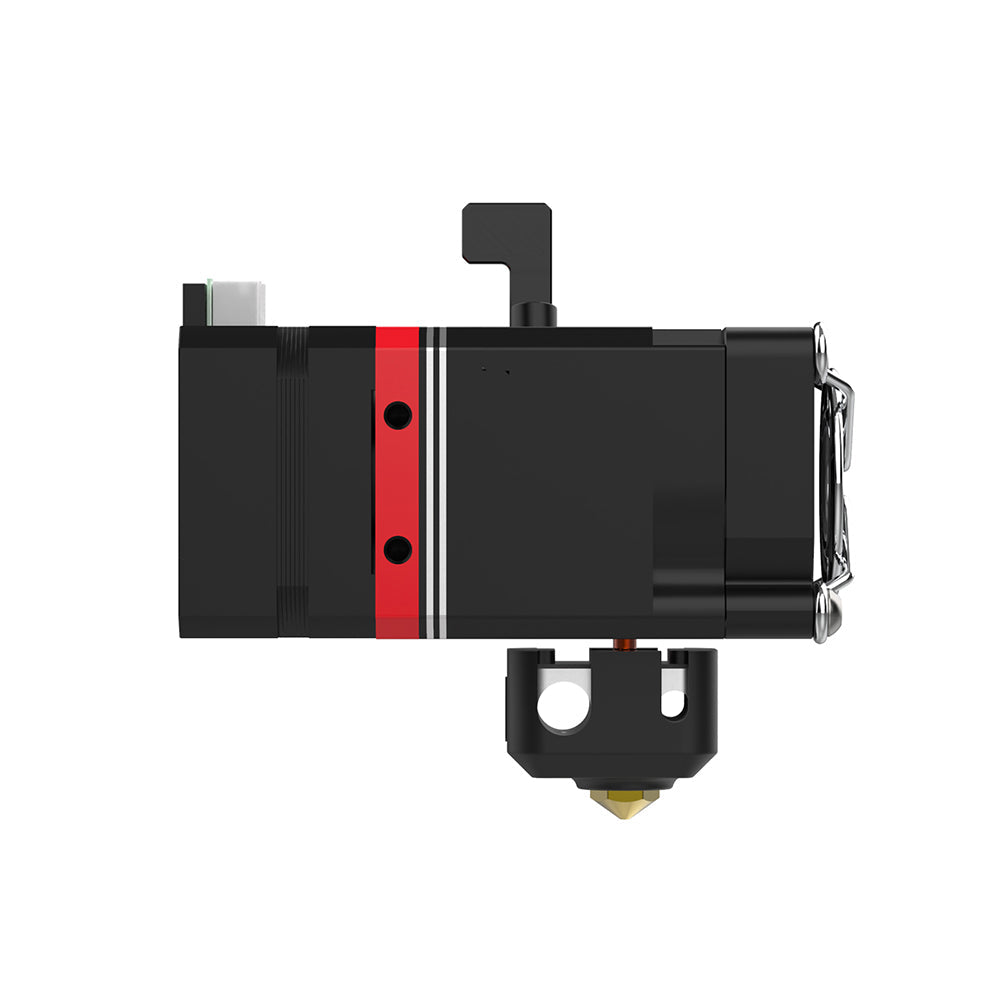

Light & Compact
Light weight, Low inertia, better positional accuracy.

Exquisite Craftsmanship
6061 T6 aluminum alloy body ensures long-lasting performance even under extreme conditions.

Easier Filament Feeding
Upgraded switch lever frees your hands when feeding.

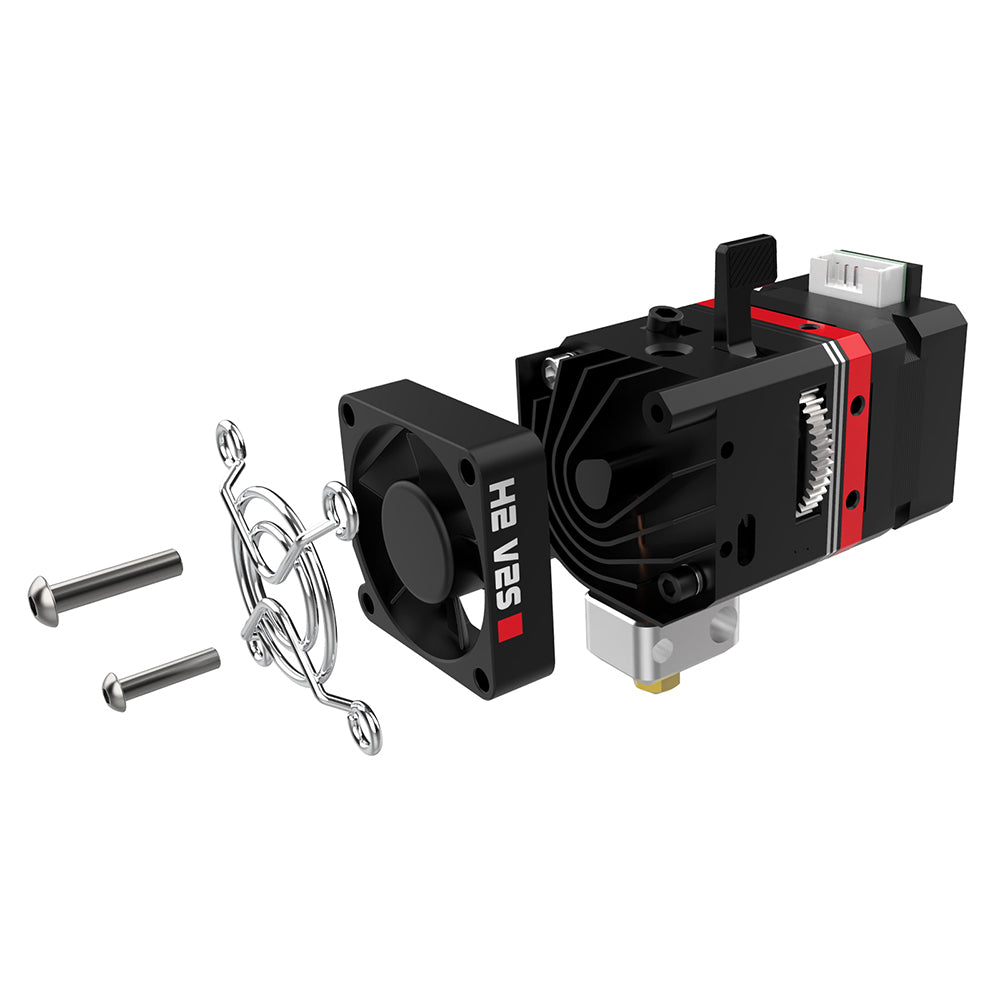

Efficient Heat Dissipation
Heatsink design optimized to improve heat dissipation, prevent heat creep and ensure longer lifespan of extruder.

Powerful Extrusion System
Dual gear and a gear ratio of 7:1 for exceptional pushing force.

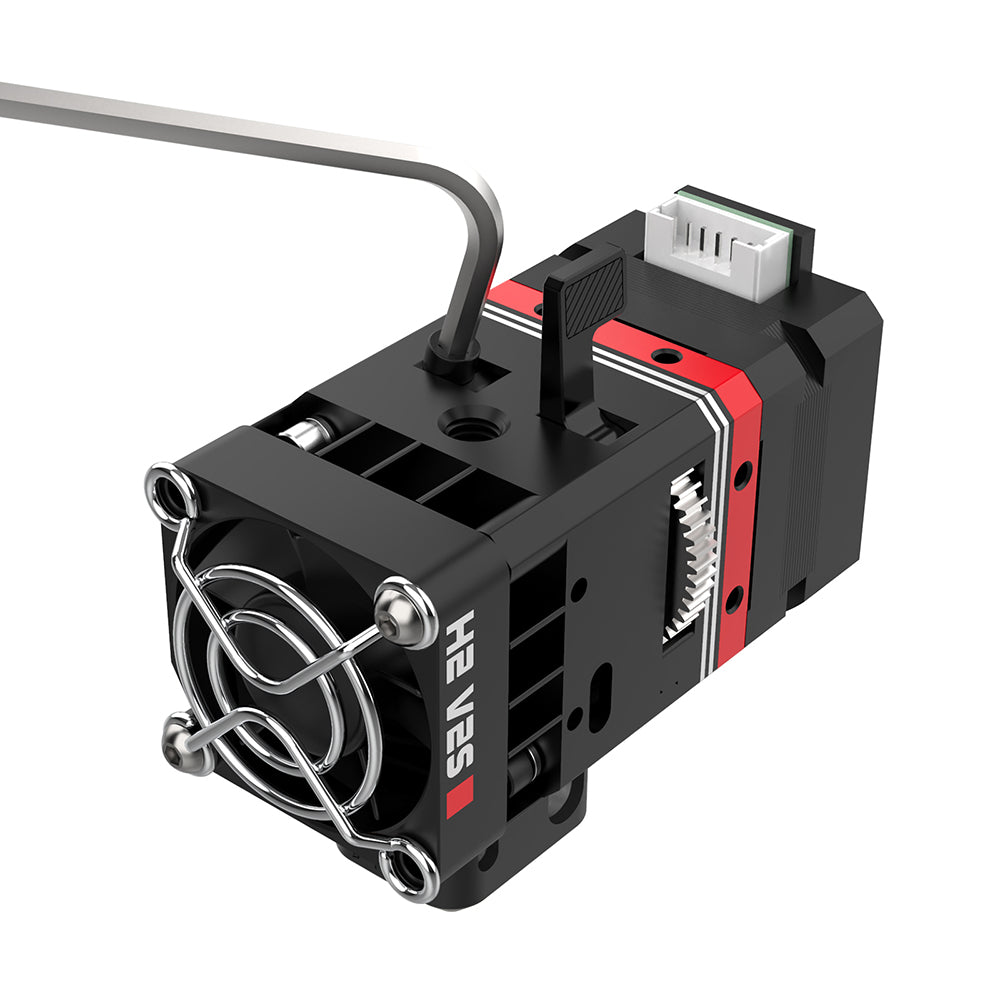

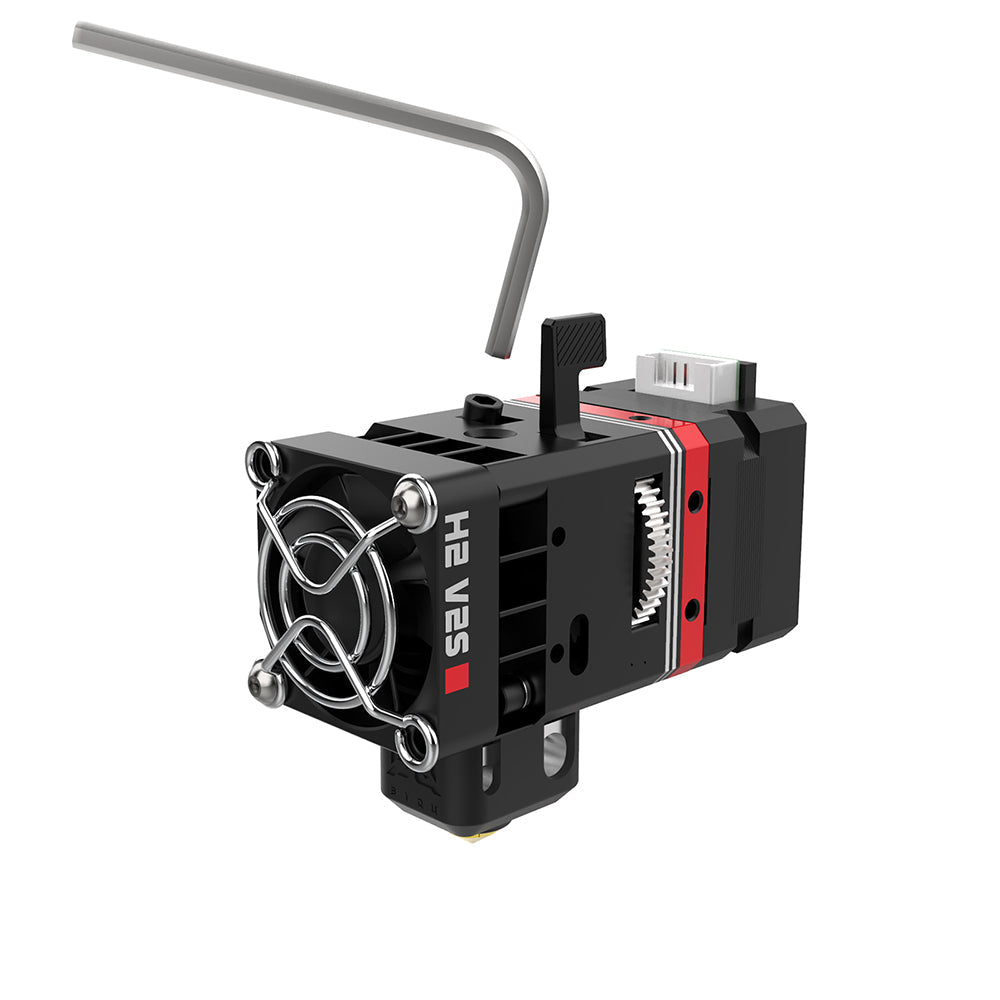

Great for flexible filament
Adjust the screw tensioner to accommodate different drive gear tension and improve printing with flexible filament.

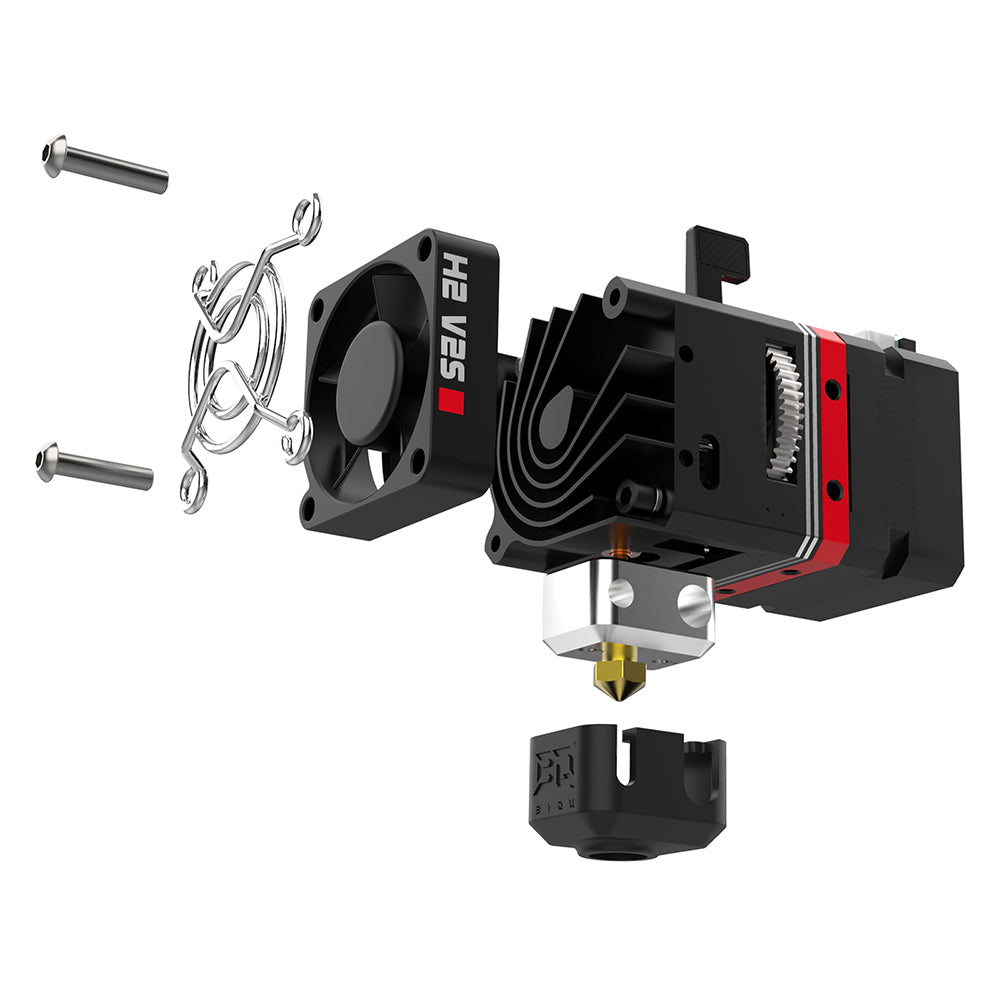

High-Temp Printing
Bi-metal heatbreak enables high-temp printing at 270℃ with silicone sock for insulation.

Perfect Compatibility
Compatible with numerous materials, ranging from PLA and ABS to TPU, Nylon and PETG.

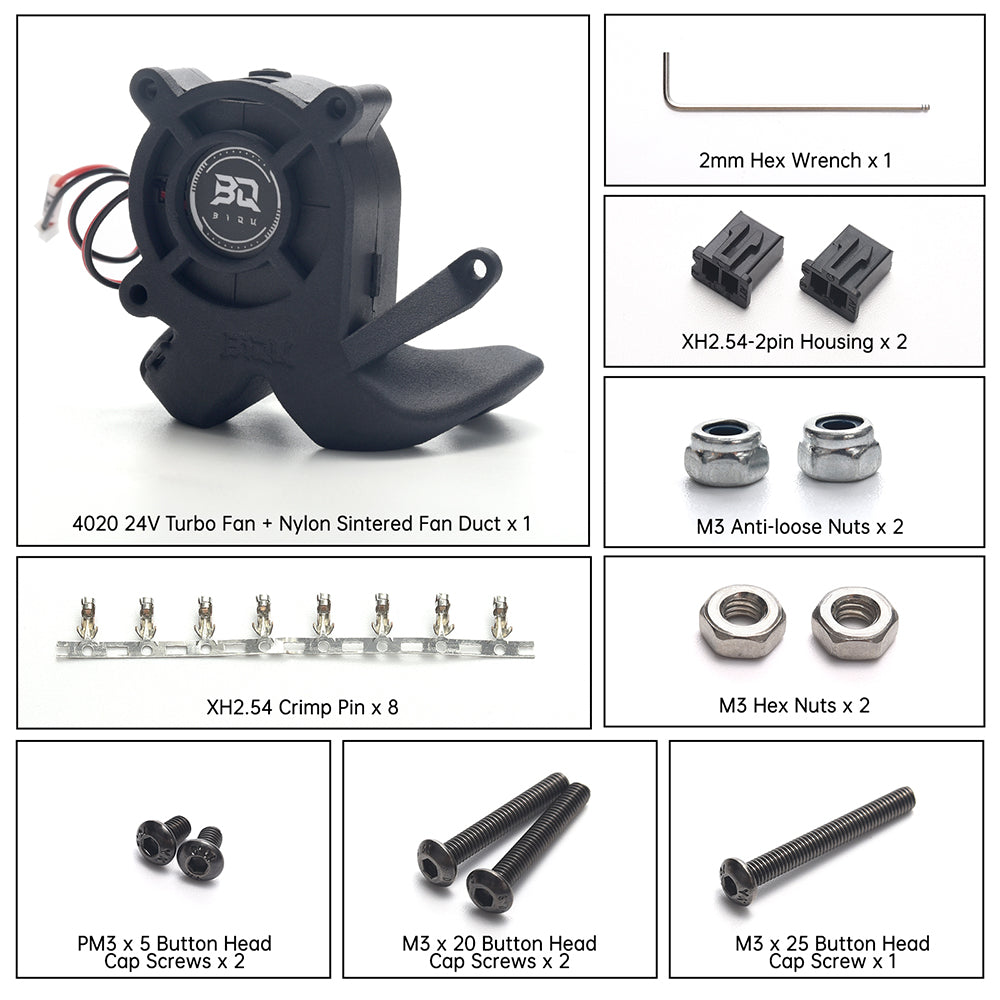

What's in the Box
The H2 V2S Complete Kit includes one pre-assembled extruder, a colling fan, cables, screws and other tools to set it on the 3d printer.
Dimensions & Specs

Extrusion Method
Dual Gear Extrusion
Maximum Printing Temperature
270℃
Weight
195g (including Heater Cartridge, Thermistor, and Fan)
Maximum Extrusion Force
7.5kg (depending on the filament)
Extrusion (based on the existing)
600mm3/min (depending on the filaments)
E-step
932/mm at 16 microstep (Further calibration is recommended)
Klipper Rotation Distance
3.433
Recommended Motor Current
800mA
Gear Ratio
7:1
Drive Gear Circumference
24.5mm
Filament Diameter and Tolerance
1.75±0.05mm
Thermistor Type
NTC100K
Heater Cartridge Power
40W
Heater Cartridge Voltage
24V
*Note: Not compatible with standard NEMA14 motor.
Quick View User Manual

*Note: Only needs a model bracket, H2 V2S is suitable for almost all hot-selling 3D printers. Here are the files for B1, Artillery X1 Genius, Pedro Palacio, CR10-S Pro v2, Ender 3/3 V2, Ender 5, Ender 6, Anycubic Mega, CR-10 V2/V3, Creality CR-6
