Product Description Lighter and Better Heat Dissipation Featuring a hollow-out design with a visible inner structure, H2...
Vendor: Biqu Equipment
SKU: 1060000581
Availability: In stock
Product type: 3D Printer j-head&extruder
$64.99
$92.00
$64.99
Save $27.01
(-57%)
Please hurry! Only 1000 left in stock
Component: H2 V2S Lite Extruder Complete Kit
Subtotal: $64.99
10 customers are viewing this product
BIQU H2 V2S Lite Extruder

BIQU H2 V2S Lite Extruder

$92.00 $64.99
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder
BIQU H2 V2S Lite Extruder

BIQU H2 V2S Lite Extruder

$92.00 $64.99
Component: H2 V2S Lite Extruder Complete Kit
Description
Description
x

Product Description

Lighter and Better Heat Dissipation

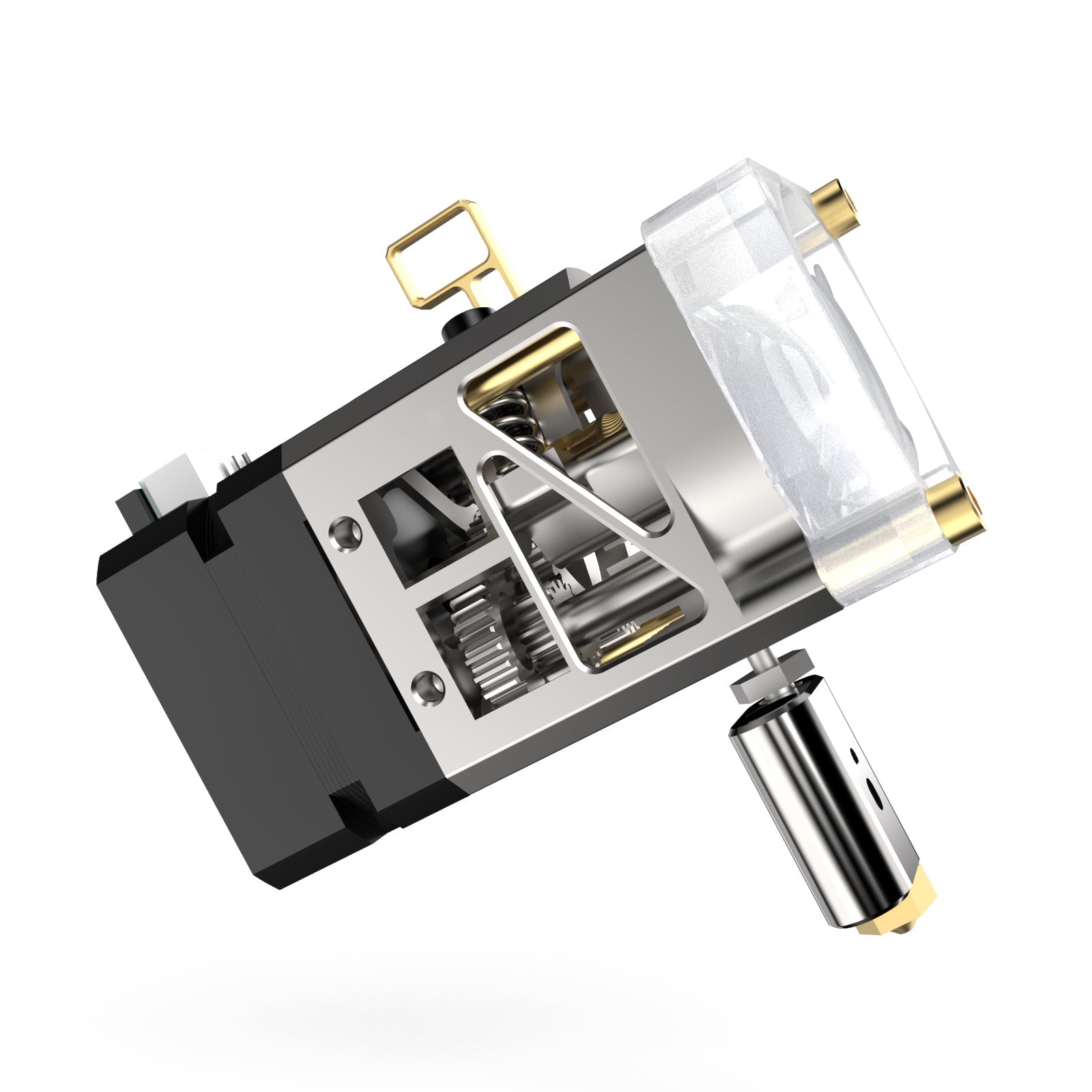

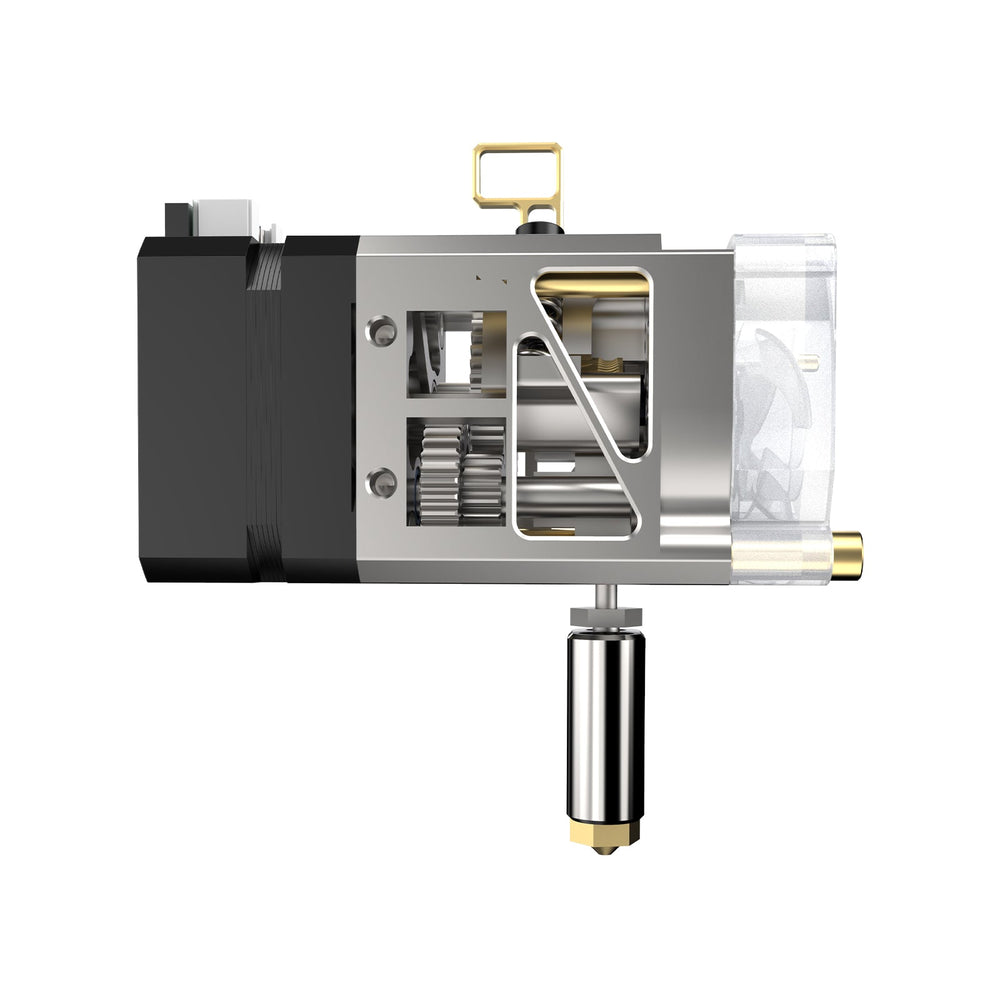

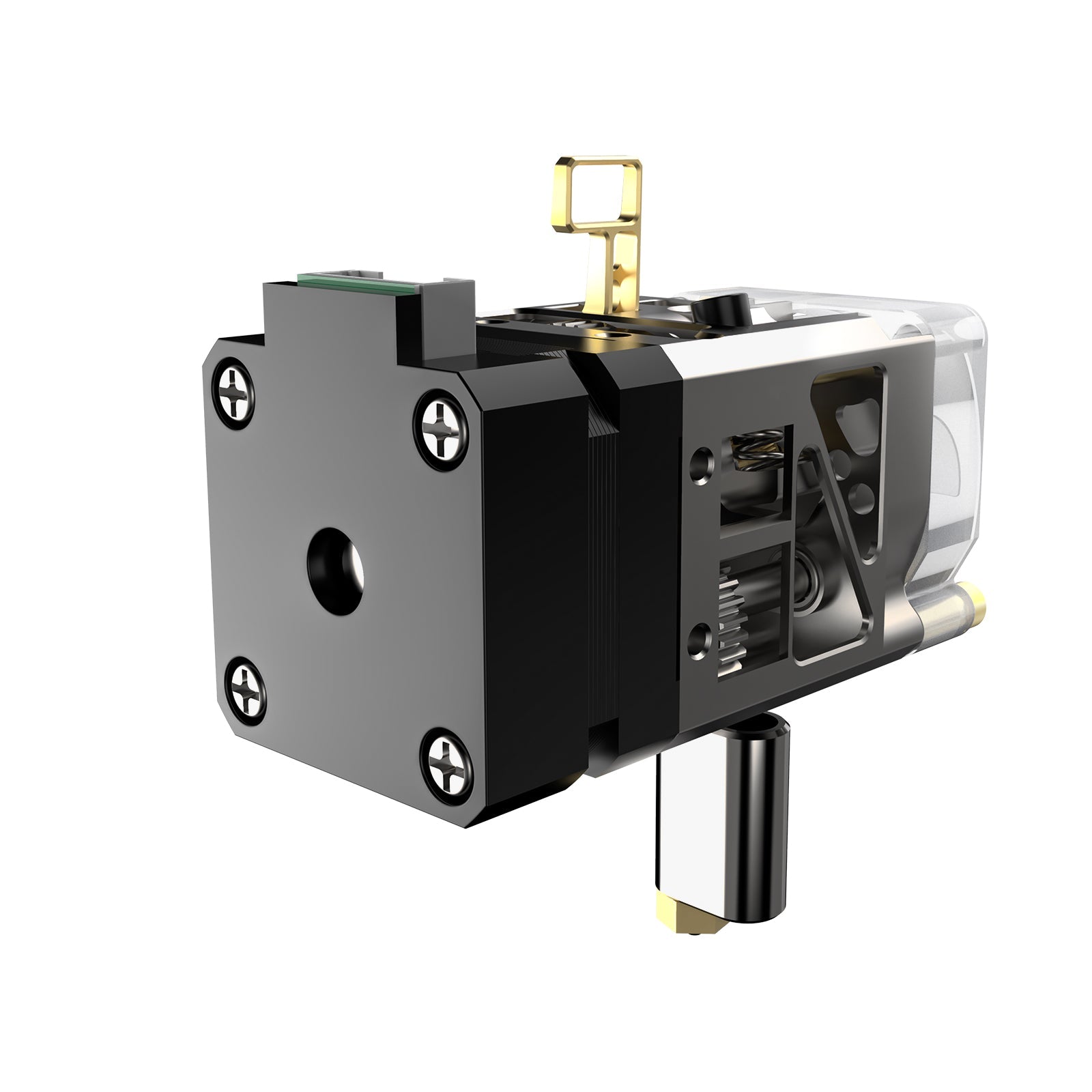

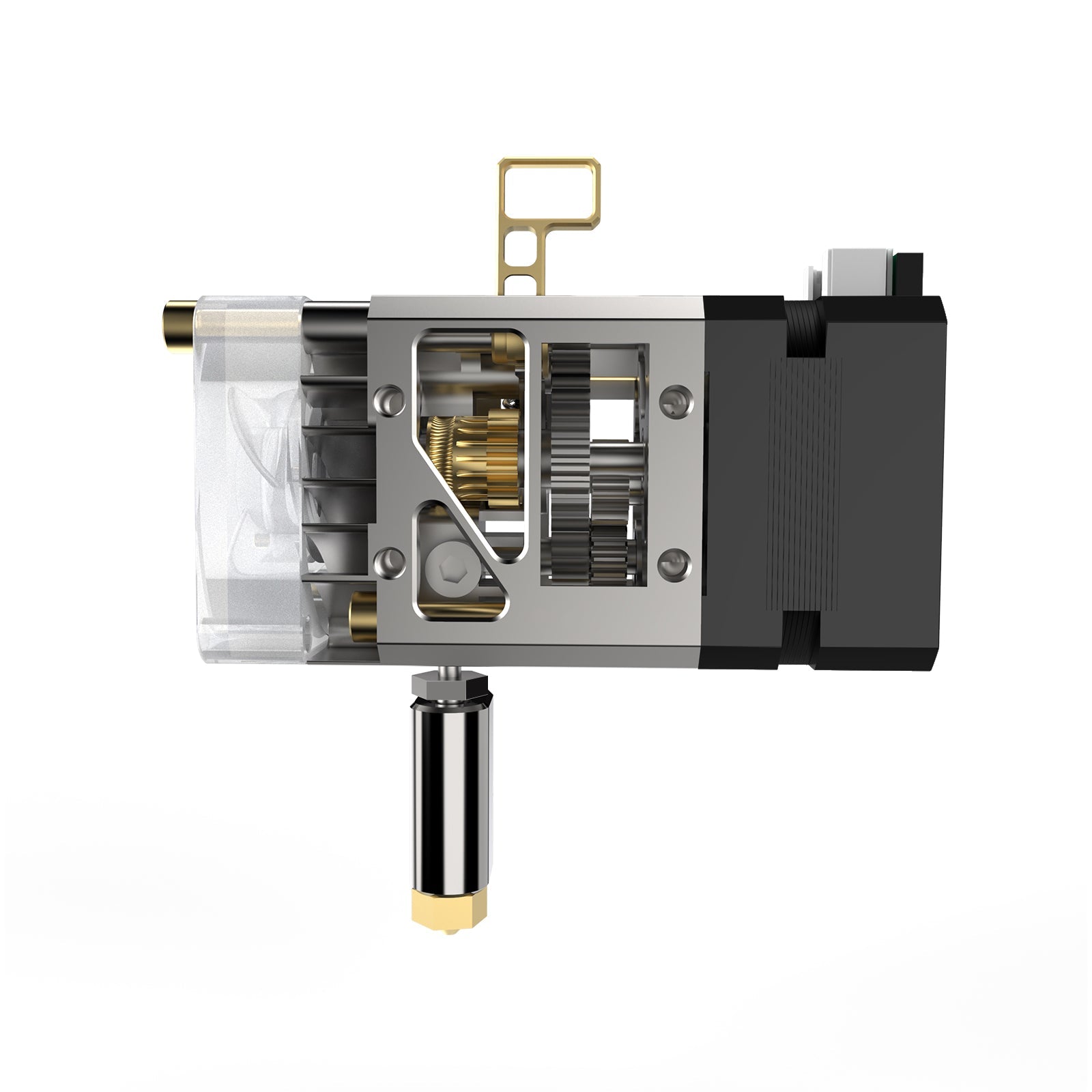

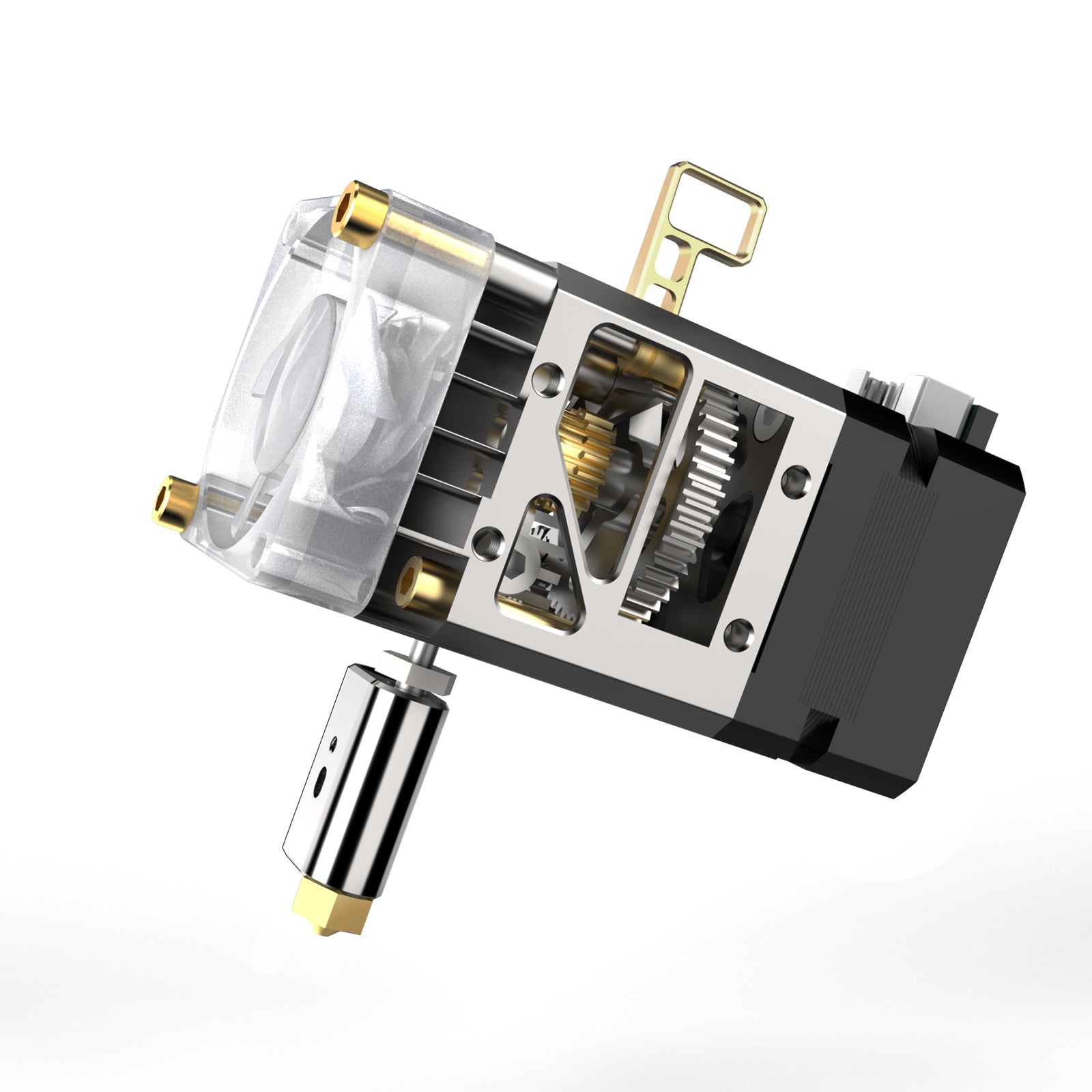

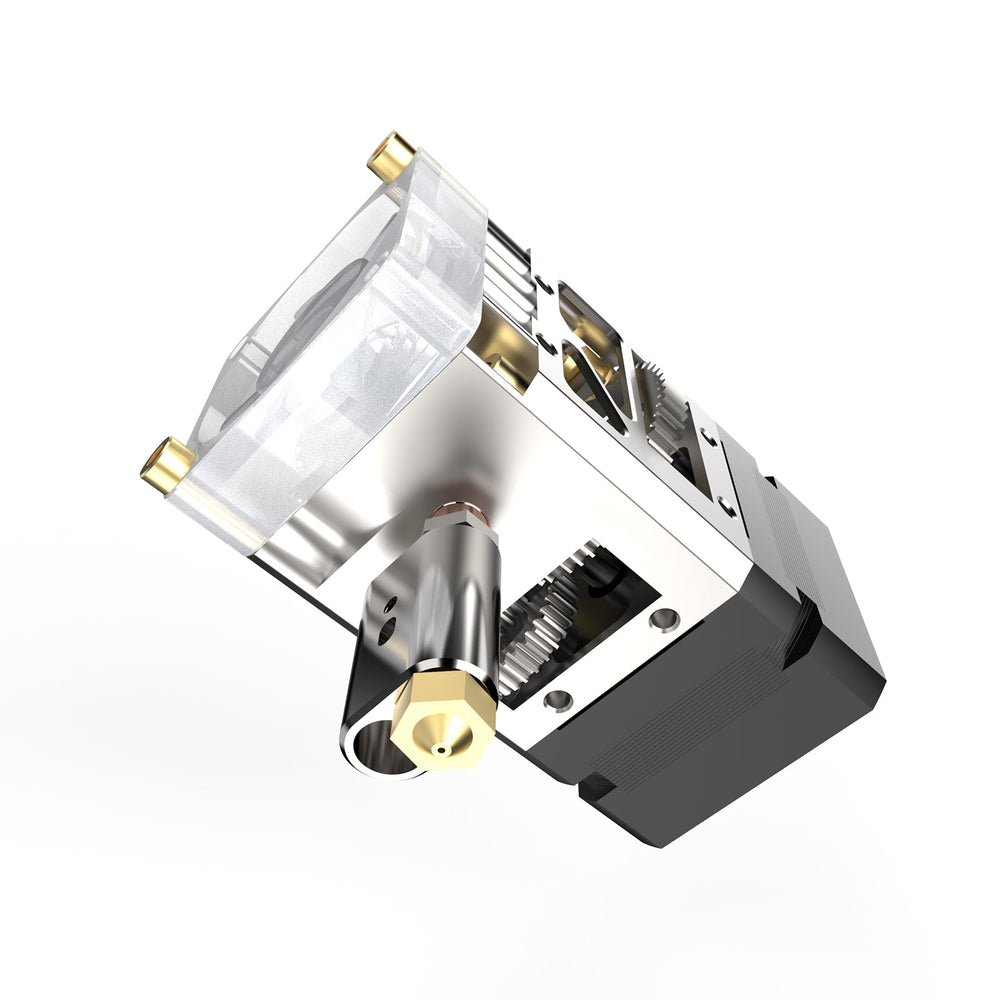

Featuring a hollow-out design with a visible inner structure, H2 V2S Lite weighs only 175g, which contributes to less inertia and more accurate positioning.

Rapid Cooling

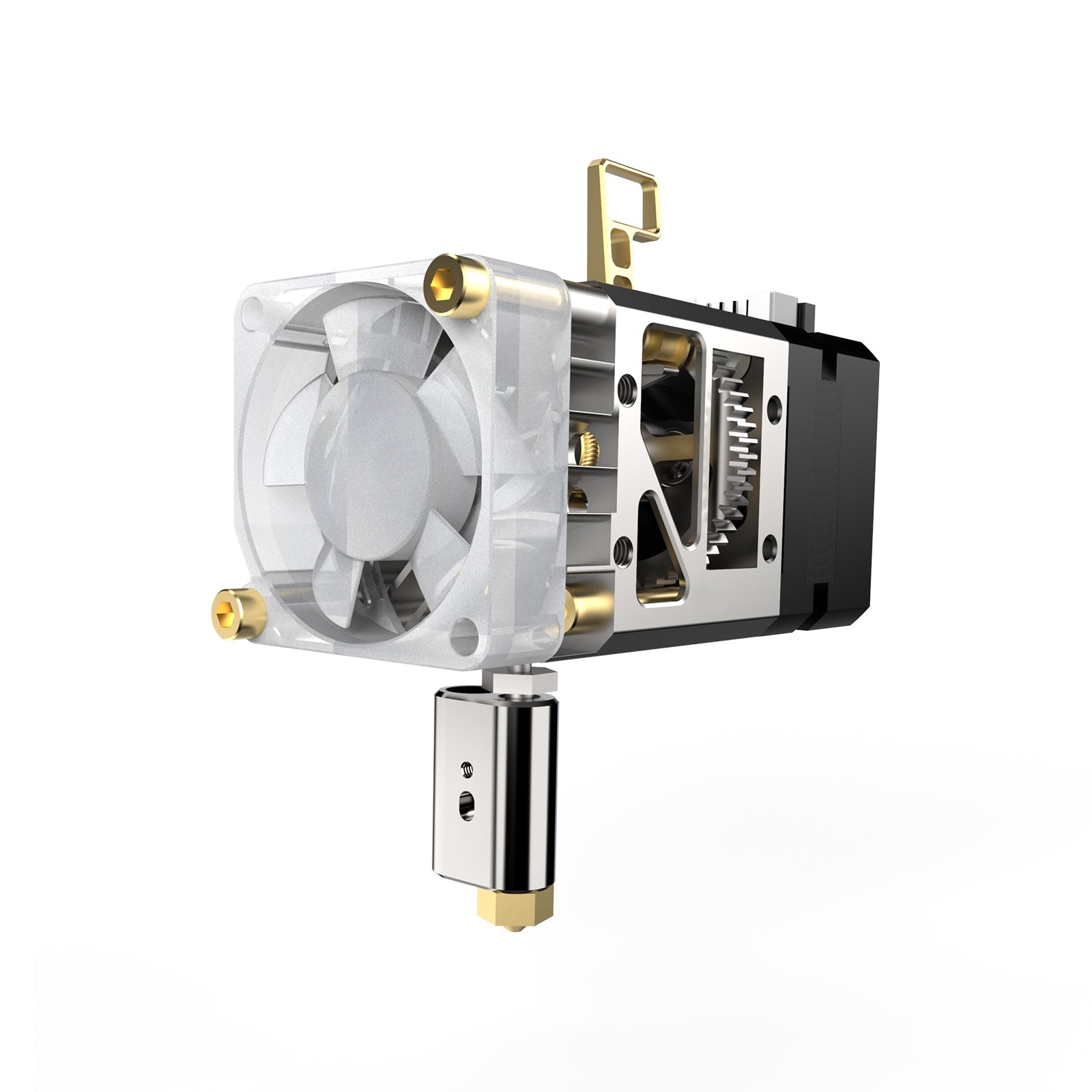

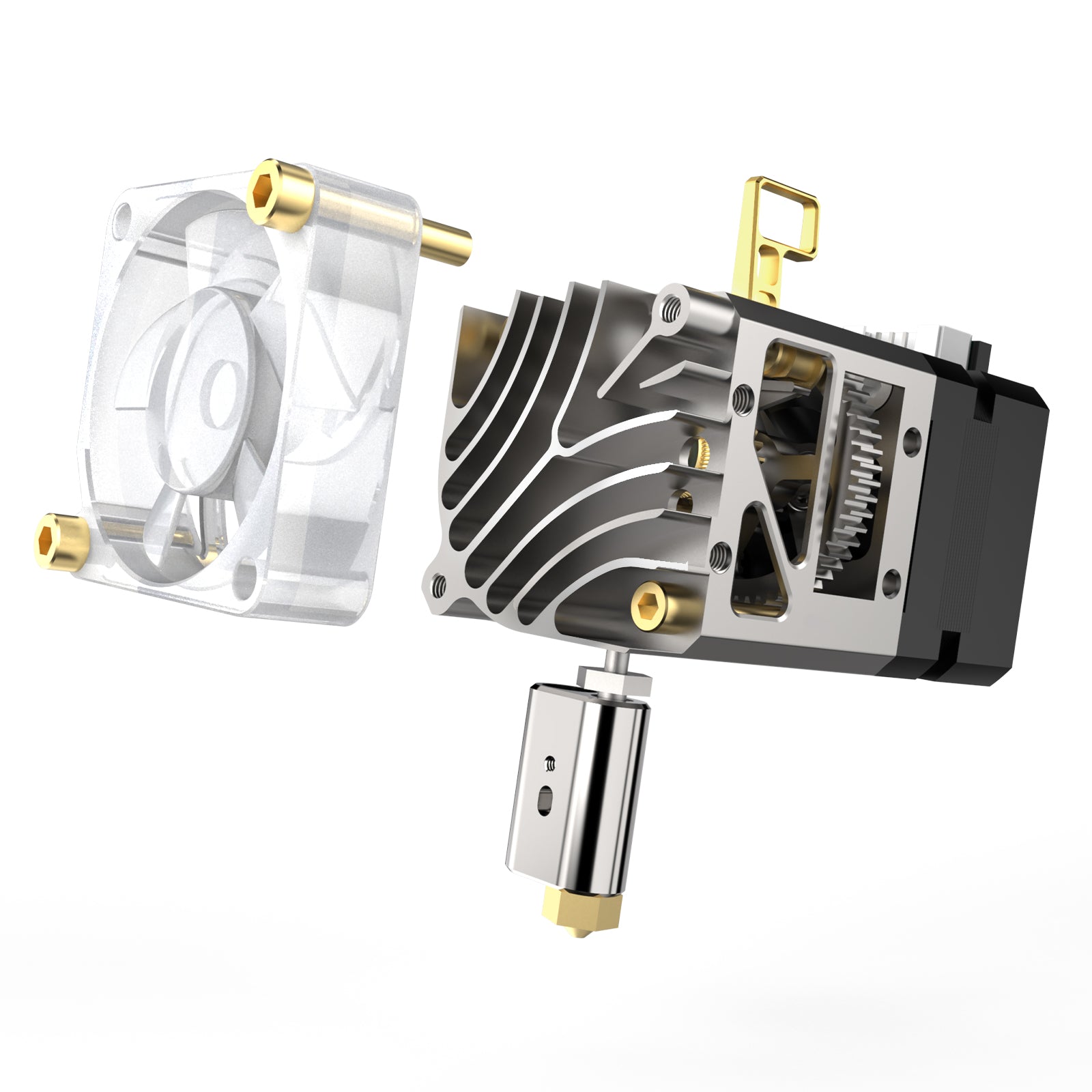

At the same time, the airflow is also improved to give better heat dissipation. Plus the heatsink and fan, H2 V2S Lite realizes a highly effective cooling.

Higher Flow. Faster Printing

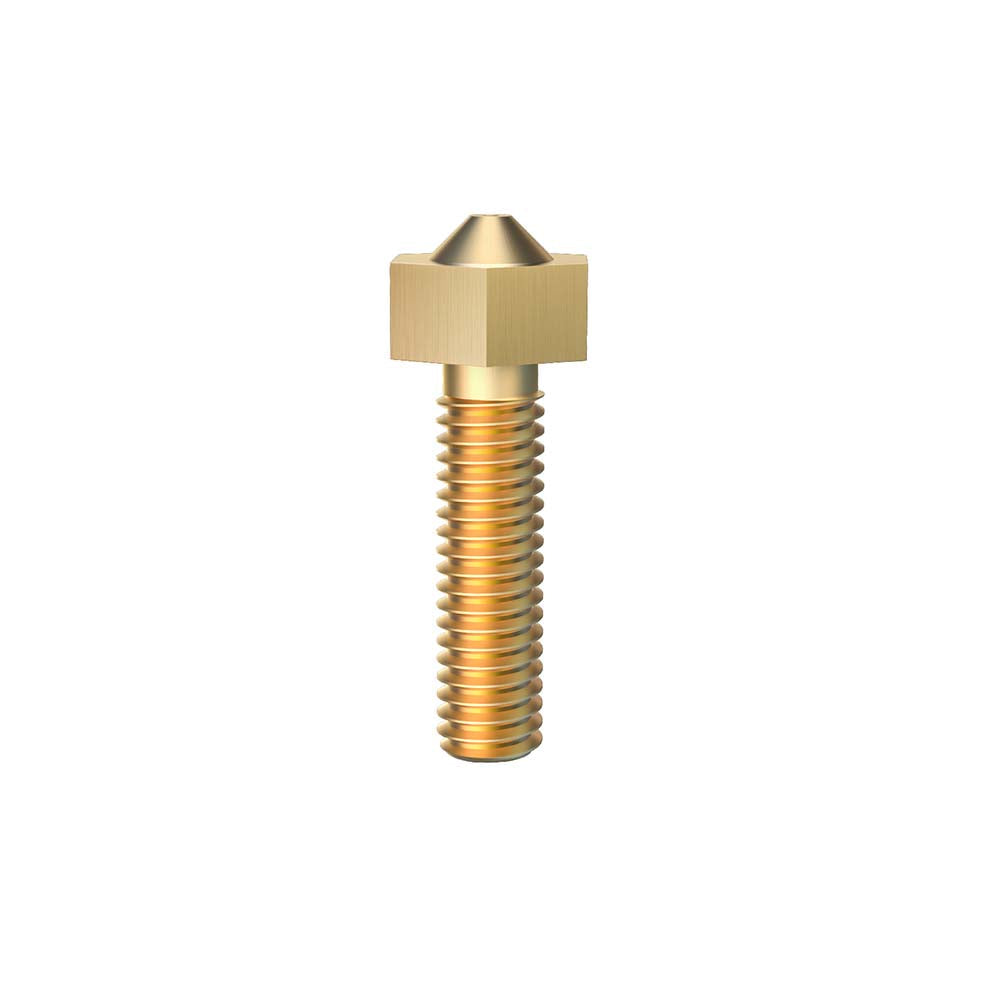

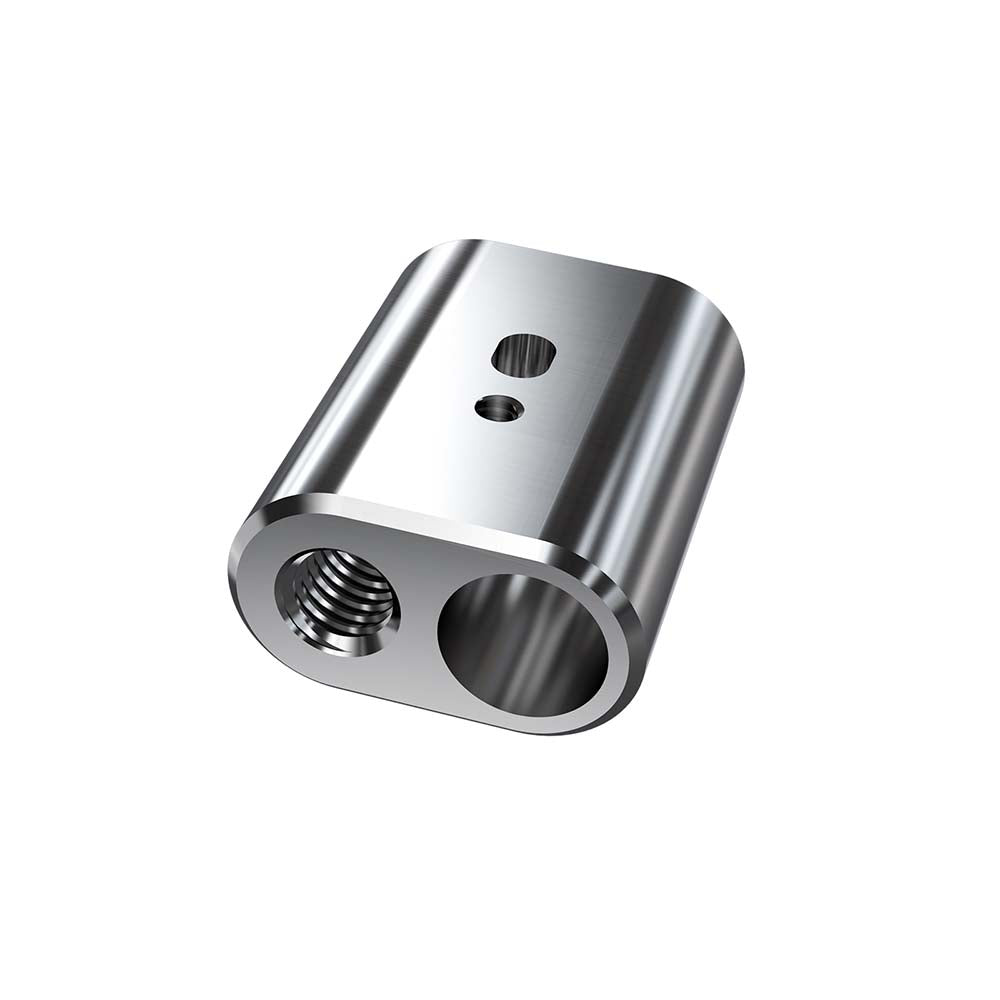

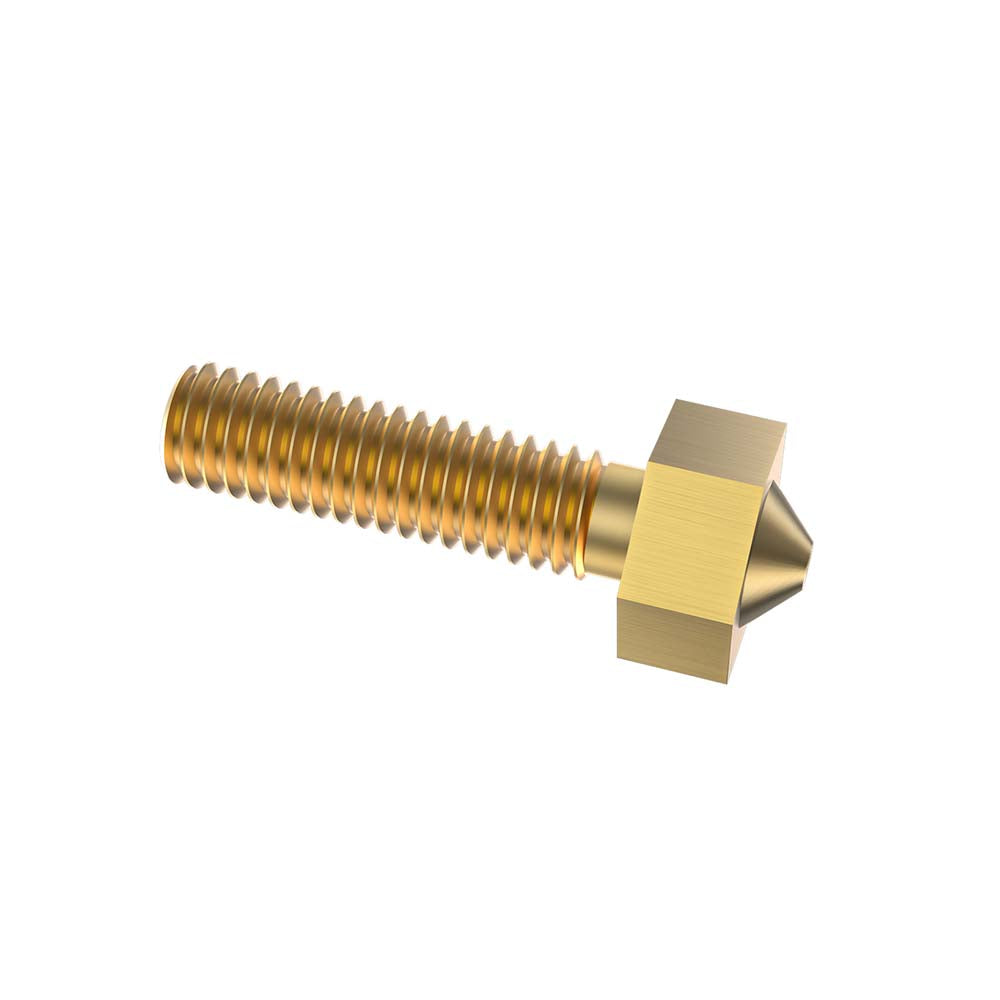

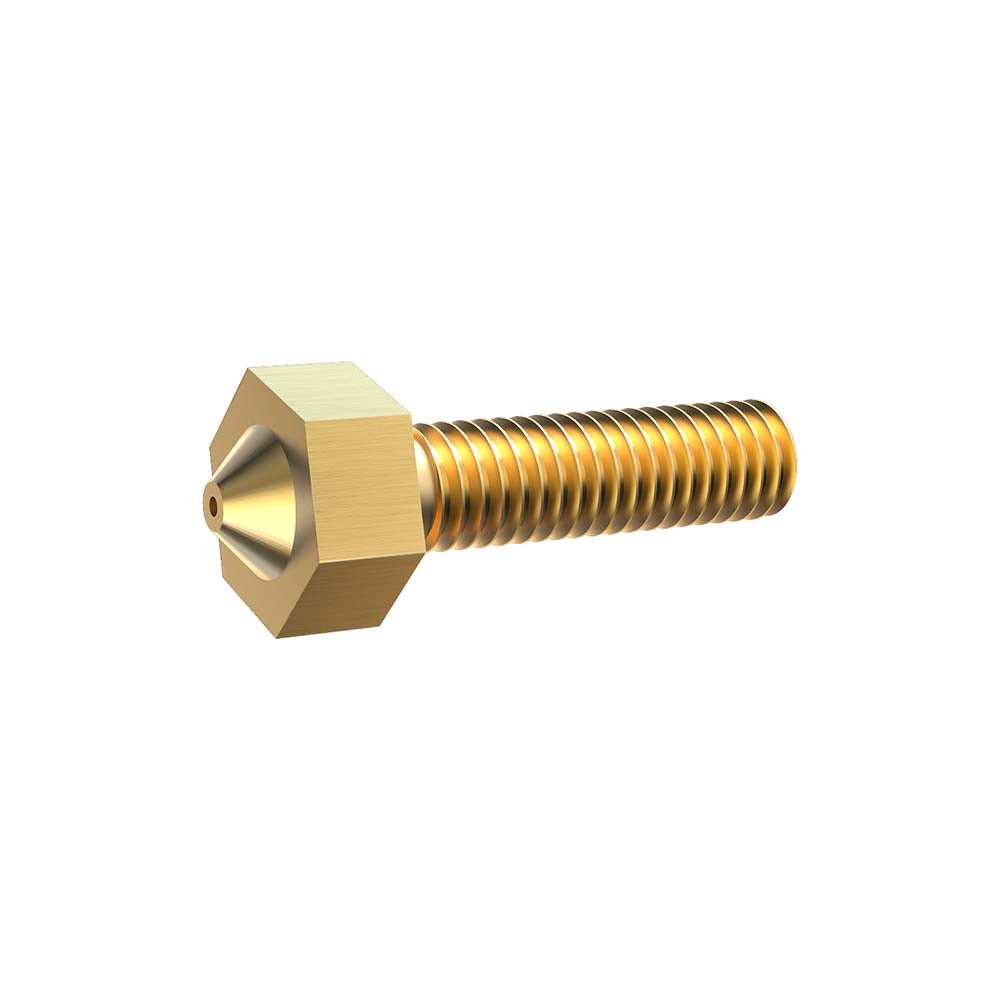

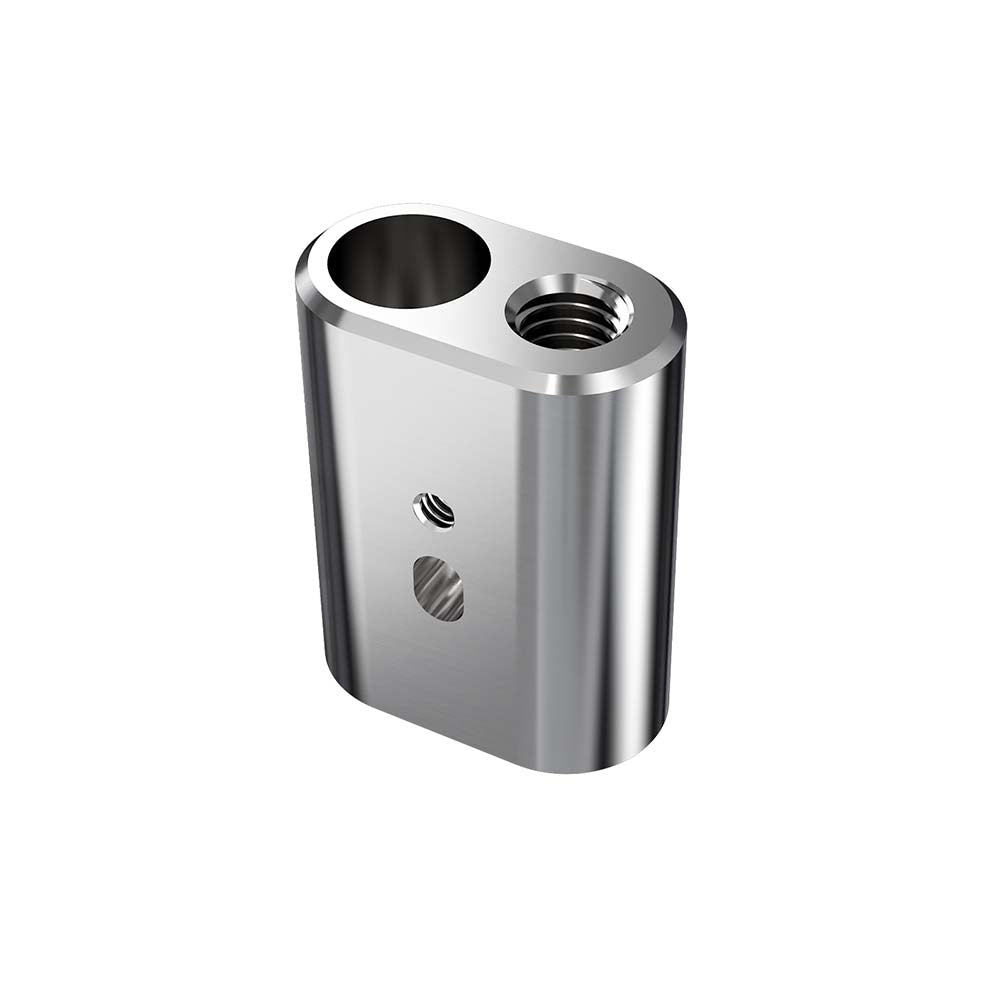

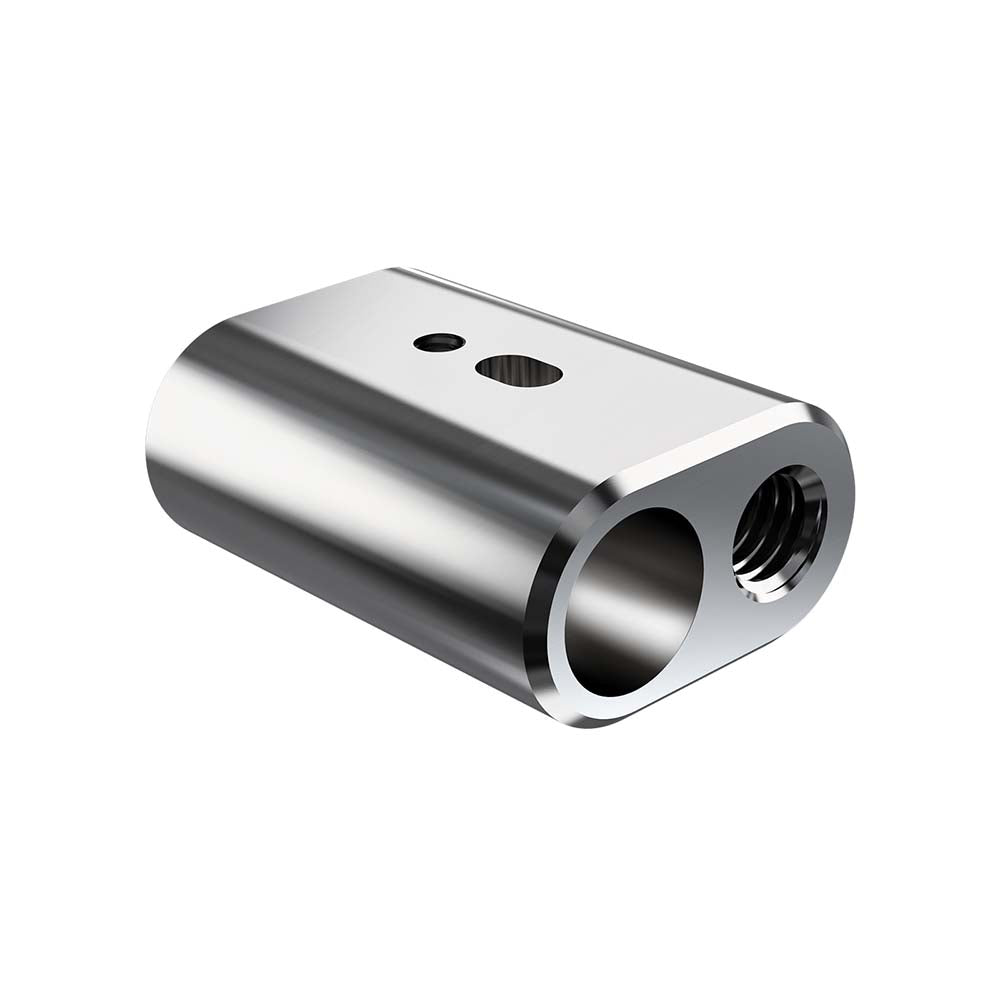

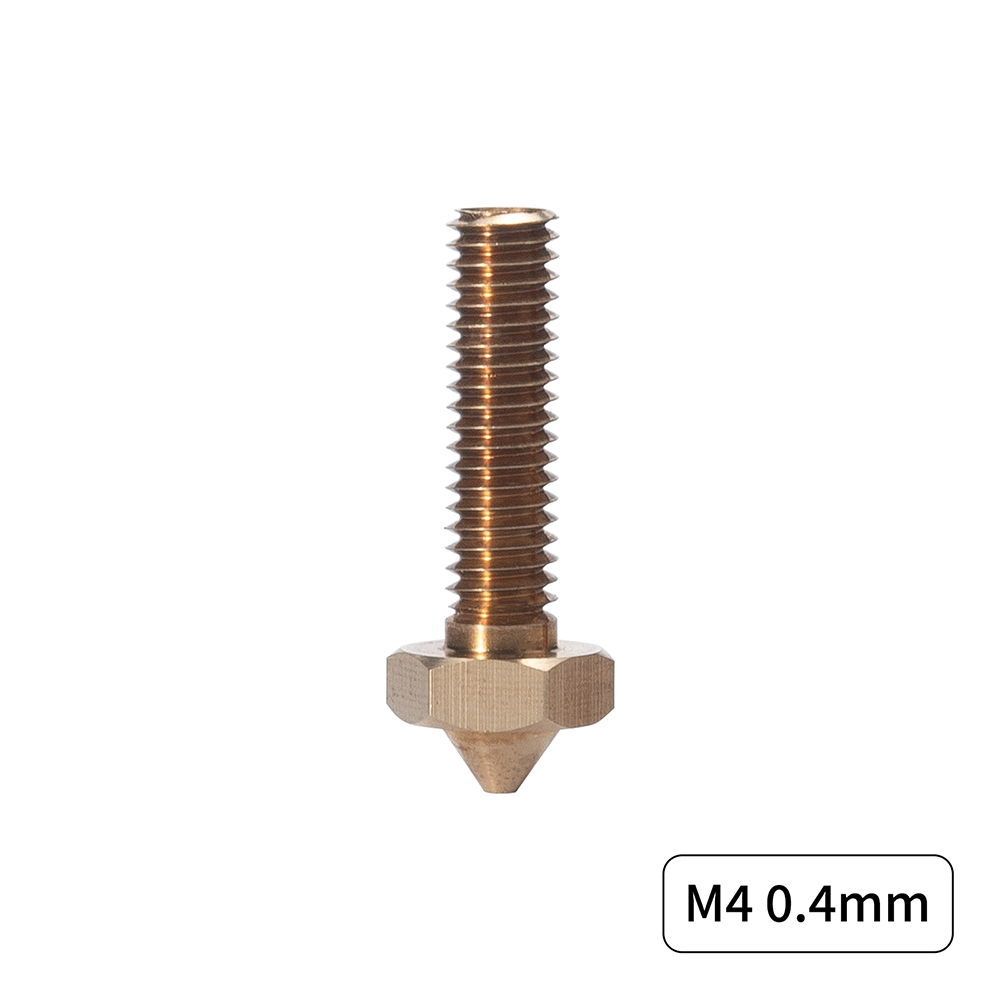

Using a 0.6mm brass nozzle, and a longer heater block, H2 V2S Lite can output 45mm³/s to meet faster printing needs.

Labor-Saving Lever

The upgraded lever, a labor-saving and convenient design, eliminates the need to continuously hold the handle when inserting or removing filament.

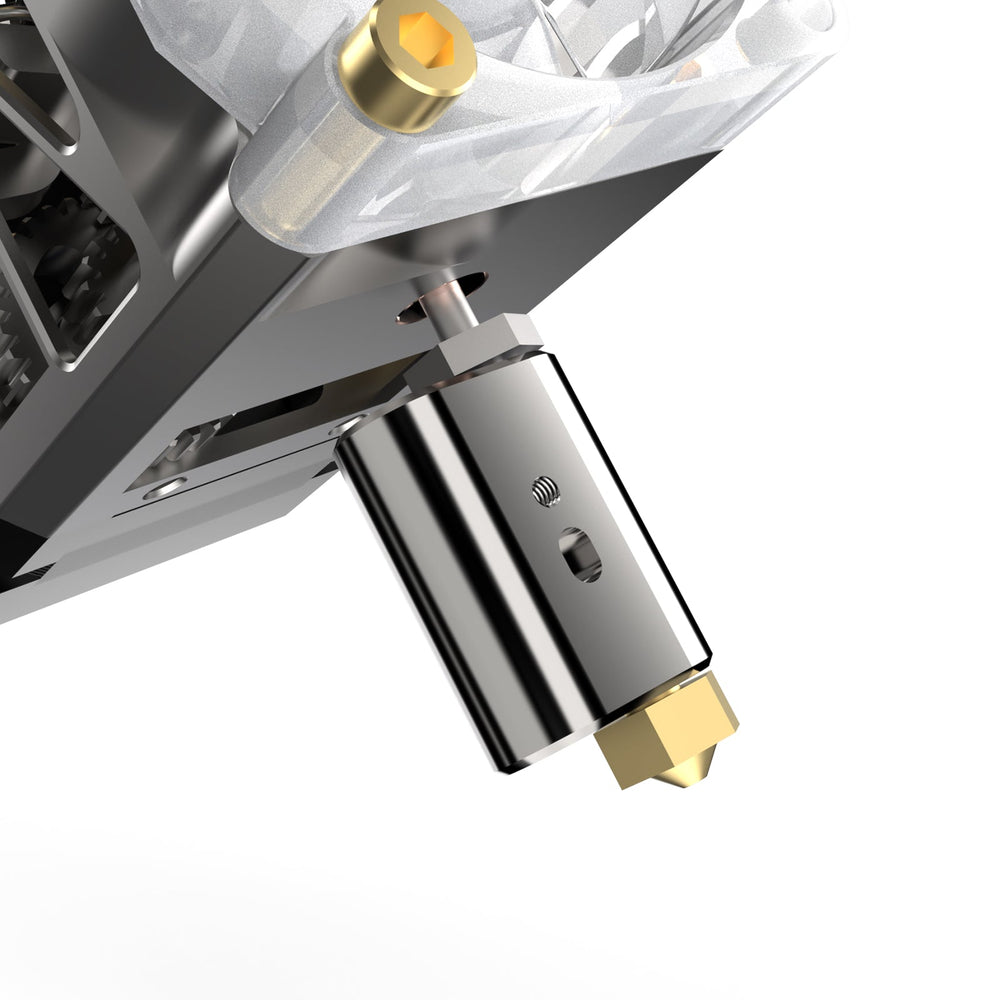

Quick Detach Heat Break

Now, with the quick detach design, you are allowed to remove the heat break by simply using a hex key,making maintaining much easier and more convenient.

Dual Gear Feeding

Featuring a dual-gear system to provide an exceptional pushing force, ensuring smooth feeding and giving snappy retractions.

Adjustable Filament Loading Tension

Simply rotate the tension screw to accommodate different filaments, improving the printing success rate.

Wide Compatibility

It can collaborate with BIQU B1, BIQU BX Ender-3, Voron 2.4, Voron V0, and Vzbot.

What's in the Box

It includes an extruder, user manual, cooling fan, cables, screws and so on.

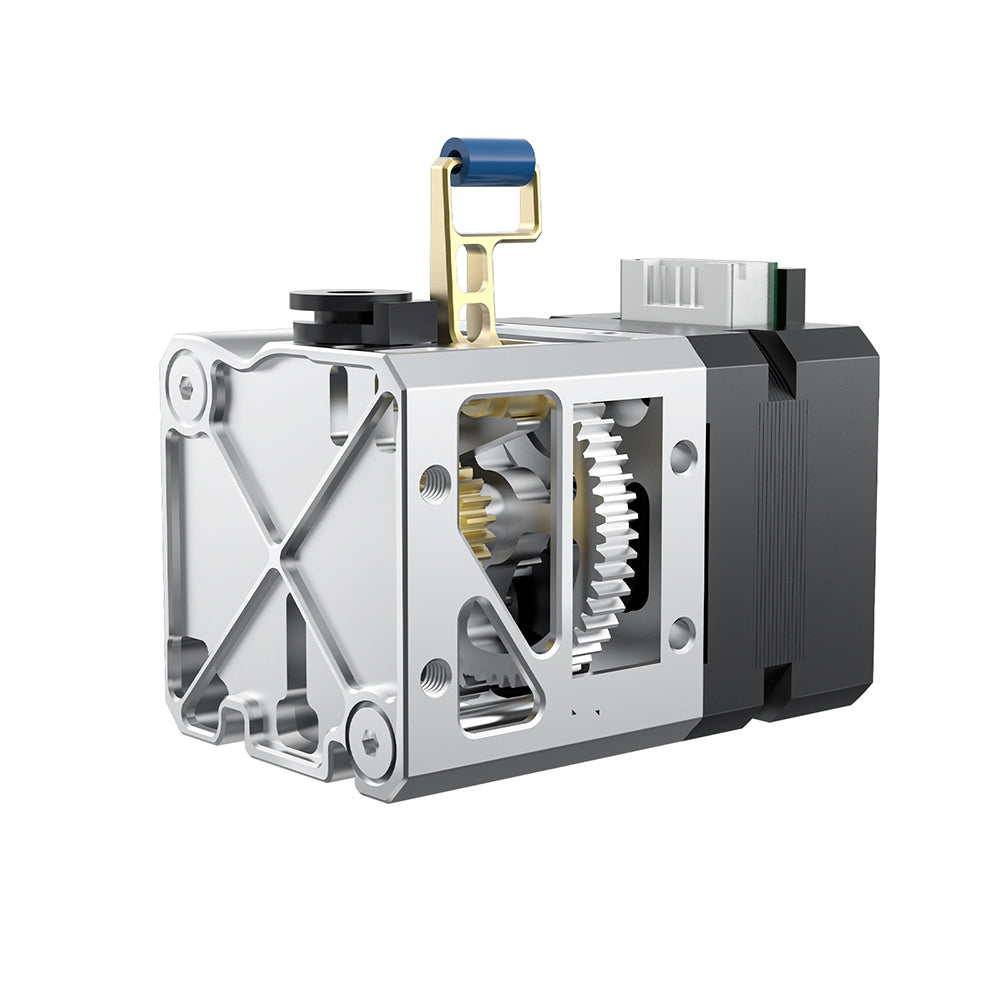

Details Make Perfect - Aluminium Alloy Case Crafted from aluminium alloy H2 V2S Lite is made for high durability,high strength,corrosion resistance, and above all, lightweight.

Filament Drive Gear - Made of tool steel plated with nano-coating to improve hardness wear resistance,corrosion resistance and provides longer life when printing abrasive materials.

Idler Arm - Made of 7075 T6 aluminum, with special blend high-performance anti-wear Mos2 grease to improve the quick release lever hap tics and enhance wear resistance.

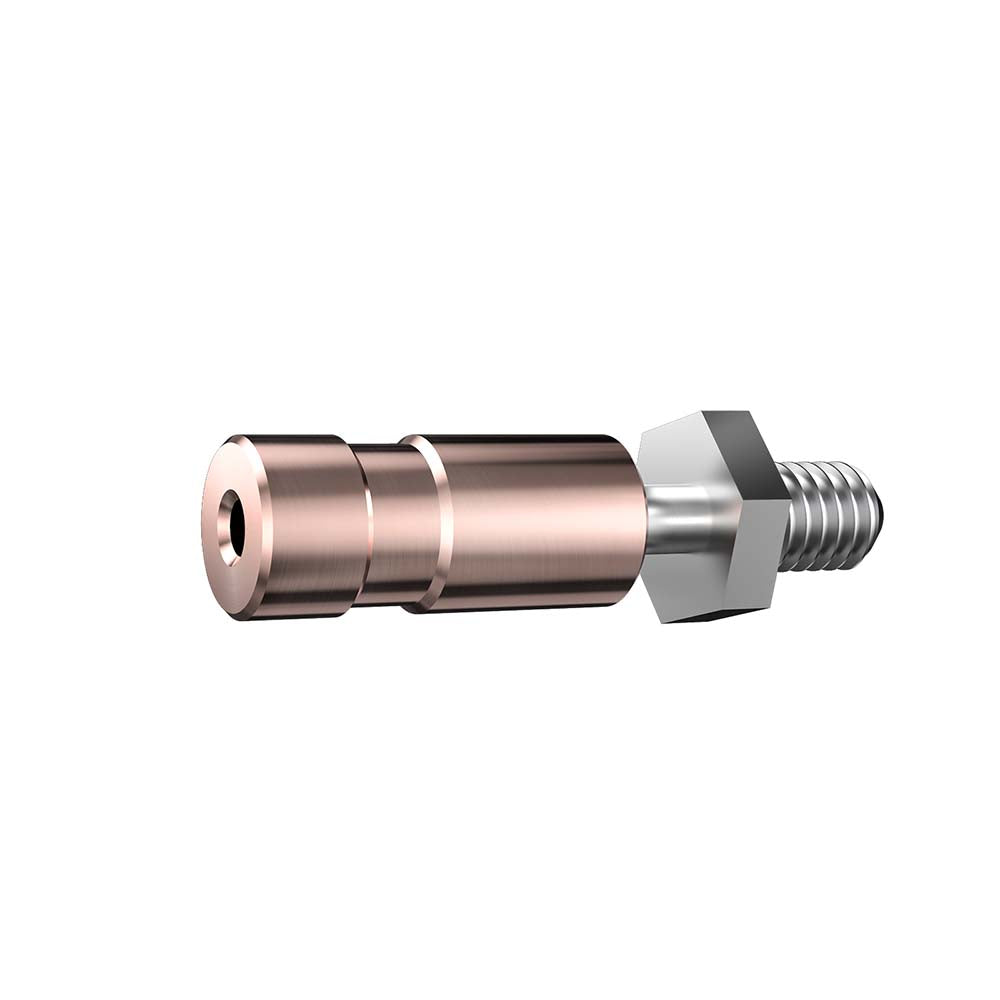

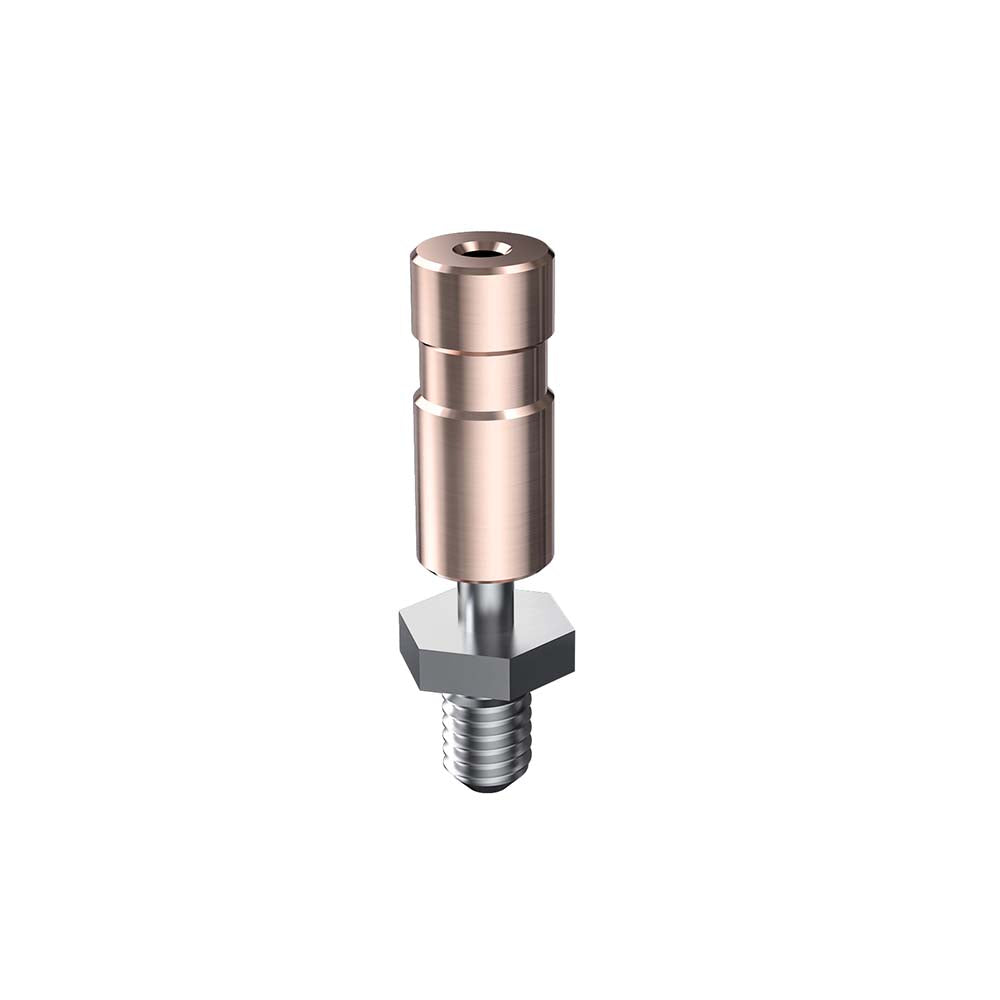

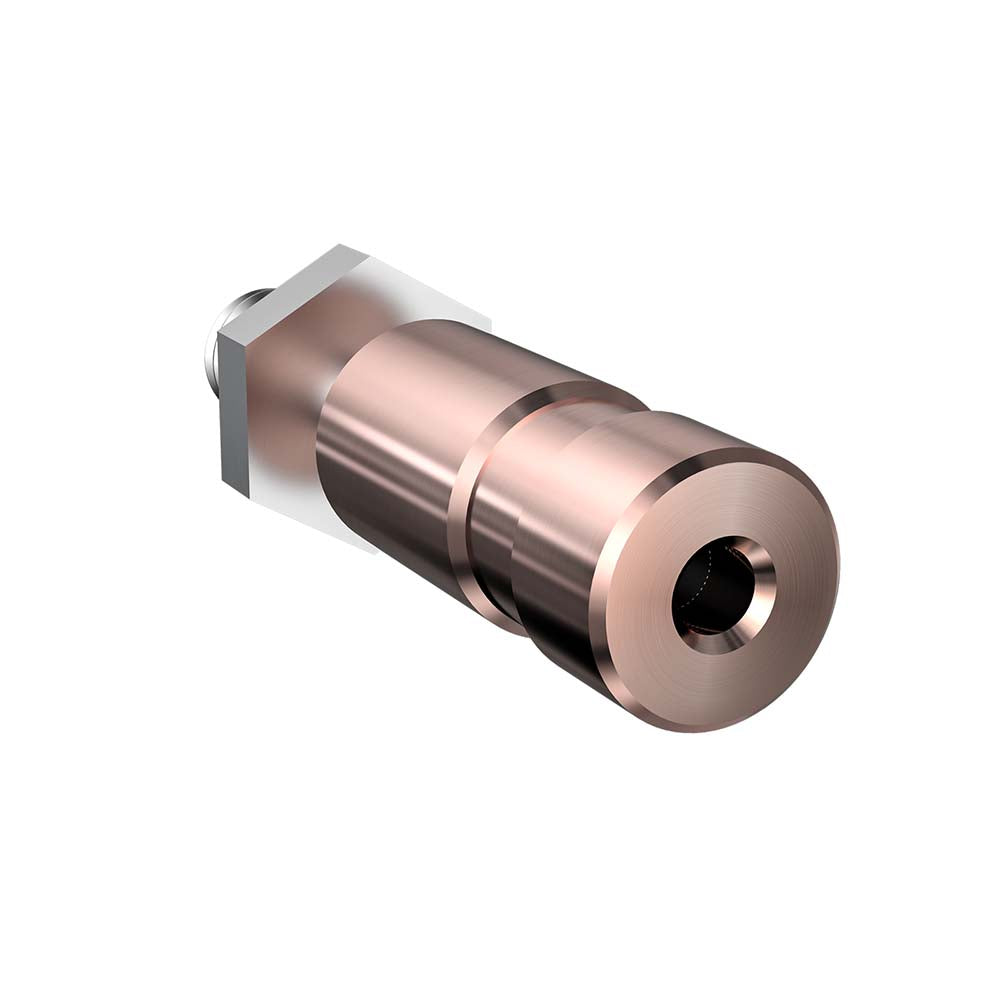

Heat Break - H2 bi-metal(copper alloy + grade 5 titanium alloy). High performance thermal grease has been pre-applied to the heat break to increase thermal conductivity between the heat break and heat sink to improve cooling performance

More Mounting Holes - 4 screw mounting holes are available for installing an auto leveling sensor cooling tan.

(Note: The nozzle is custom-made and will be released in the near future.)

Dimensions & Specs

Extrusion Method

Dual Gear Extrusion

Maximum Printing Temperature

270℃

Weight

175g (including Heater Cartridge, Thermistor, and Fan)

Maximum Extrusion Force

7.5kg (depending on the filament)

Extrusion (based on the existing)

2700mm3/min (depending on the filaments)

E-step

932/mm at 16 microstep (Further calibration is recommended)

Klipper Rotation Distance

3.433

Recommended Motor Current

800mA

Gear Ratio

7:1

Drive Gear Circumference

24.5mm

Filament Diameter and Tolerance

1.75±0.05mm

Thermistor Type

NTC100K

Heater Cartridge Power

70W

Heater Cartridge Voltage

24V

*Note: Not compatible with standard NEMA14 motor.
